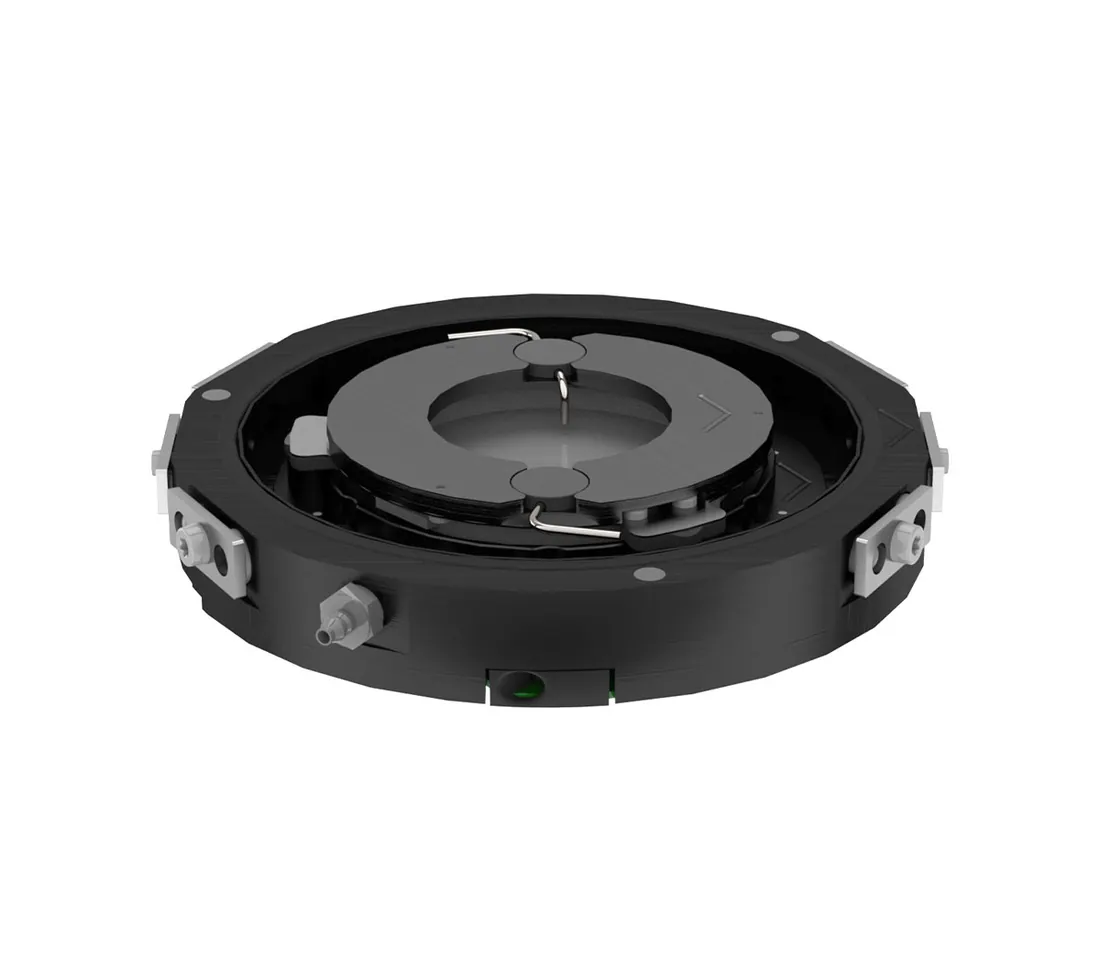

Petri Dish Holder
Brand: Nanosurf | Category: Nanotechnology
A holder that takes 35 and 50 mm Petri dishes with magnetic clamping, for AFM work on cells and tissue in liquid. Heating to 60 degrees C is available with the CH1 controller, and the DriveAFM version also allows perfusion and environmental control.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | ambient to 60 degrees C |
| Compatible Petri dishes | 35 mm and 50 mm diameter |
| Options | Live Cell Incubator for DriveAFM |
| Requires | Temperature Controller CH1 for heating |
| Dimensions | 100 mm diameter x 14 mm |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
