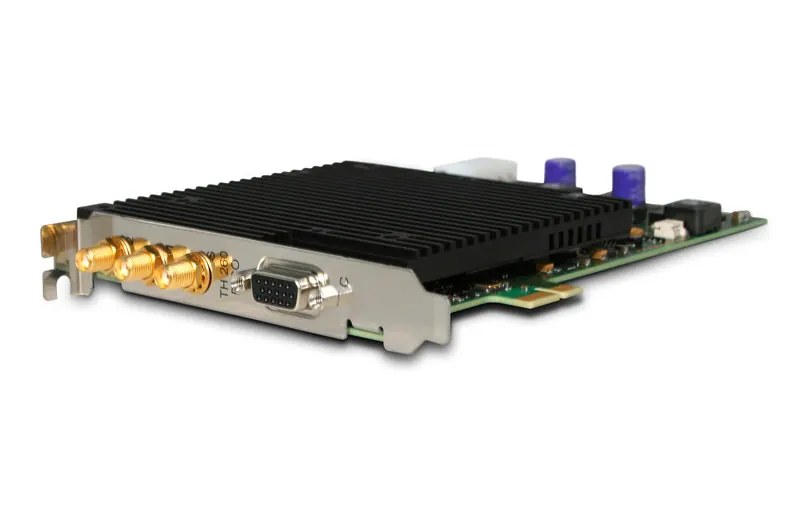

Photon Timer attachment
Brand: Riso | Category: Scientific & Laboratory Equipment
An attachment that records when each individual photon is detected, at 1 ns resolution, relative to the start of the preceding stimulation pulse. The supplied PTanalyse software builds photon arrival time distributions and OSL decay curves for different gating intervals.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Time resolution of 1 ns per detected photon |
| Specification | All detected photons time stamped with respect to the start of the preceding pulse |
| Specification | Data acquisition controlled by the Sequence Editor program |
| Specification | PTanalyse software calculates arrival time distributions and gated decay curves |
| Specification | Post processed data exported to BIN files or CSV files |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Riso equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
