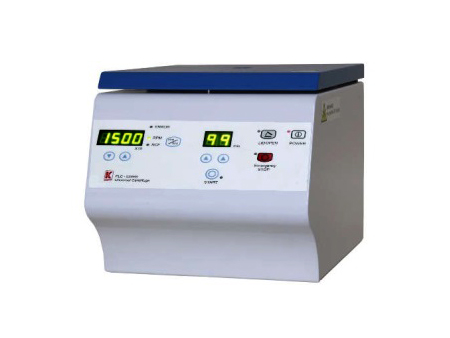

PLC-036H universal centrifuge
Brand: GEMMY Industrial | Category: Medical Equipment
A brushless universal centrifuge adjustable from 1000 to 5000 rpm, running on a universal 100 V to 240 V, 50/60 Hz supply with microprocessor speed control and a two digit 99 minute LED timer. The stainless steel chamber is protected by imbalance detection with alarm and brake, an overheat alarm, a safety interlocking lid with an override for power failure, an emergency stop and a shutout device that acts when the lid is opened. GEMMY publishes eight rotors for the machine, ranging from the A-2420 at 15000 rpm and 20630 x g down to the H-0450 for four 50 ml tubes, including the F-2415 capillary rotor for haematocrit testing at 12000 rpm and 14490 x g. The cabinet measures approximately 320 x 400 x 310 mm and weighs 17 kg without a rotor.
Technical Specifications
| Parameter | Value |
|---|---|
| Overall Dimension | 32 x 40 x 31 cm Approx. |
| N.W. | 19 Kg (Not Include Rotor) Approx. |
| Motor | Brushless Motor, DC24V |
| Chamber | Stainless Steel Easy for Cleaning |
| Timer | 2-digital, 99 min, LED Display |
| Control System | Microprocessor Controlled System |
| Speed Range | 1000 ~ 15,000 Rpm (± 100 RPM) |
| Imbalance Detection | Yes, Alarm & Shutout |
| Braking System | Automatic Braking System |
| Interlocking Lid | Yes |
| Emergency STOP | Yes |
| Overheat Alarm | Yes |
| ERROR Detection | Yes |
| Power | 100V ~ 240V, 50 / 60HZ |
| Standards | ISO 13485, CE, QMS, USFDA |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Tube formats, sample volumes and required relative centrifugal force
- Included rotor/adapters, speed range and temperature-control requirement
- Safety interlocks, utilities, maintenance and consumables
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about GEMMY Industrial equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
