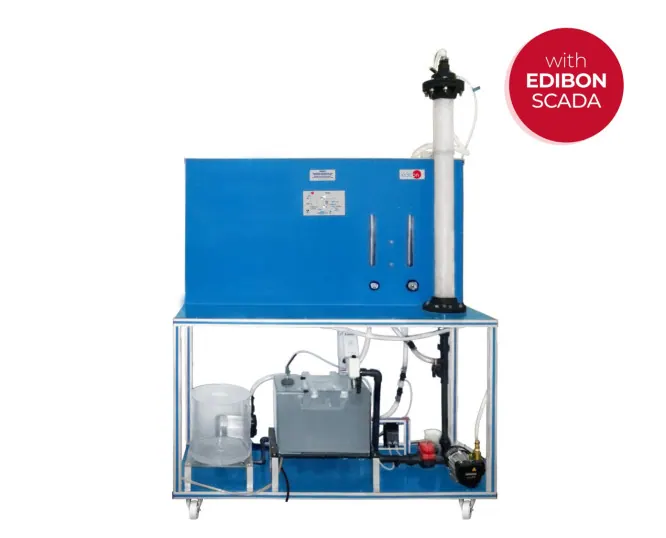

PLGC: Computer Controlled Gas Washing Processing Plant
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A wet scrubbing plant in which water is pumped to the top of a column while solids are fed in by a dosing system, so that the gas stream is washed as it passes through. It is used to teach particulate and gas removal from air streams and to measure scrubbing efficiency.
Technical Specifications
| Parameter | Value |
|---|---|
| Computer controlled compressor (blower) | 2700 rpm, 0.25 kW |
| Cylindrical feed water tank. Height | 300 mm and diameter: 300 mm |
| Flow sensor to determine the air flow, range | 0 to 4 m³/h |
| Flow sensor to measure the water flow, range | 0.2 to 6 l/min |
| Differential pressure sensor at the column, range | 0 to 1 psi |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
