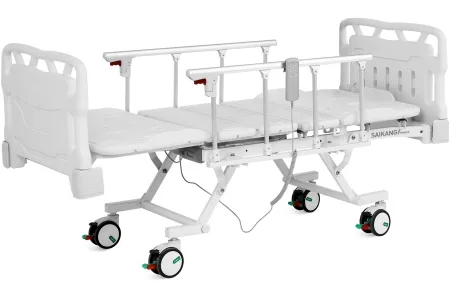

Q5k Dialysis Bed (SKD-A)
Brand: Saikang Medical | Category: Medical Equipment
Two linear motors drive back-rest adjustment through 0-75°(±5°) and knee-rest adjustment through 0-45°(±5°), worked from an ergonomic handheld controller designed for patients and nurses alike. External size is 1930x880x600 mm over a 1710x780 mm mattress platform, with a 200 kg safe working load. A unique aseptic design meets hospital infection control requirements, and the environmental plastic can be sterilised at 100°C with tensile strength up to 30MPa. Five removable washable PP platform sections, an aluminium alloy foldable side rail set, PP bed ends with safe lock, four 5" double side castors, an IV pole with four provisions and two drainage hooks are supplied.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size (LxWxH) | 1930x880x600 mm |
| Mattress platform | 1710x780 mm |
| Safe working load | 200 kg |
| Back-rest adjustment | 0-75°(±5°) |
| Knee-rest adjustment | 0-45°(±5°) |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
