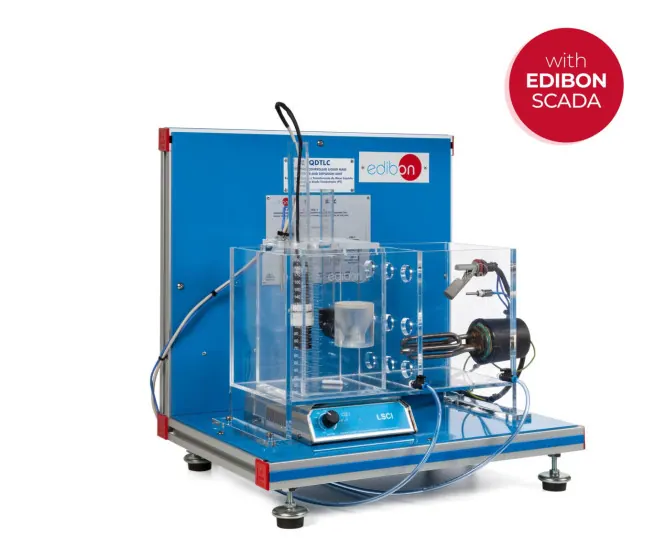

QDTLC: Computer Controlled Liquid Mass Transfer and Diffusion Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A teaching unit for measuring diffusion in liquid systems. Students determine diffusion coefficients from concentration measurements and relate them to temperature and solution composition, which introduces the basic theory behind mass transfer operations.
Technical Specifications
| Parameter | Value |
|---|---|
| Magnetic stirrer, computer controlled, and magnet, range | 0 to 300 rpm |
| Water vessel, capacity | 8 l |
| Computer controlled heating element, with PID Control. Power | 500 W |
| Dimensions | 500 x 370 x 500 mm approx |
| Weight | 20 Kg approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
