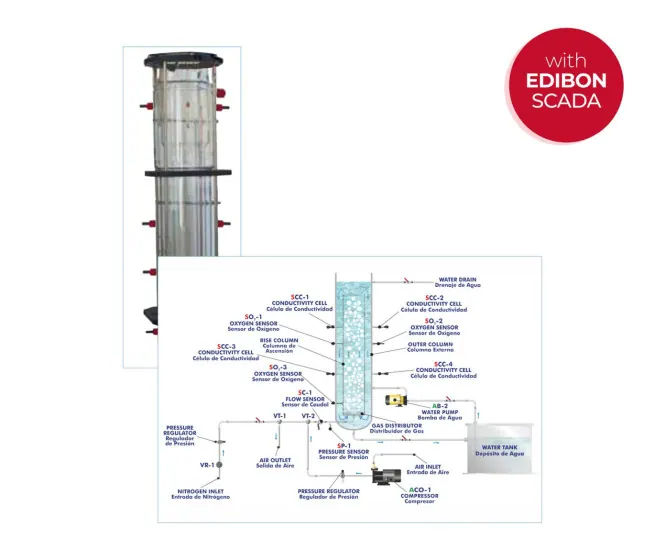

QRALC: Computer Controlled Airlift Reactor
Brand: EDIBON | Category: Scientific & Laboratory Equipment
An aerobic submerged airlift reactor made of transparent material so that internal recirculation can be observed. It is used to determine the characteristic variables of airlift operation, including gas holdup, circulation velocity and oxygen transfer, which makes it suitable for teaching bioreactor design.
Technical Specifications
| Parameter | Value |
|---|---|
| Diameter of outer column (reactor column) | 200 mm |
| Diameter of the riser column | 60 mm |
| Tank capacity | 60 l approx |
| Maximum flow supplied | 37 l/min |
| Maximum pressure | 2 bars |
| Electrical supply | single phase, 220V/50Hz or 110V/60Hz |
