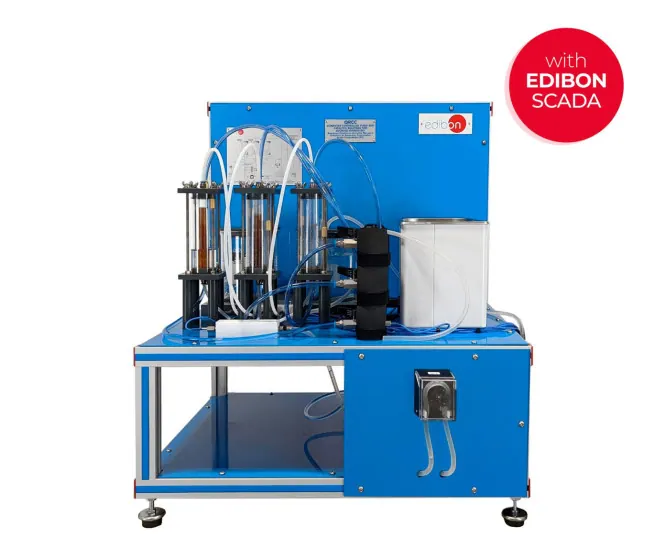

QRCC: Computer Controlled Fixed-Bed Catalytic Reactors for Sucrose Hydrolysis
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A fixed bed catalytic reactor unit for studying the hydrolysis of sucrose into glucose and fructose. It demonstrates heterogeneous catalysis, conversion against residence time and the effect of temperature on reaction rate. A spectrophotometric analysis section allows the reactor outlet to be measured directly.
Technical Specifications
| Parameter | Value |
|---|---|
| Reactors diameter | 50 mm. Reactors height: 160 mm |
| Wavelength range | 325 to 1000 nm. Band width: 5 nm |
| Dimensions | 650 x 700 x 800 mm approx |
| Weight | 50 Kg approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
