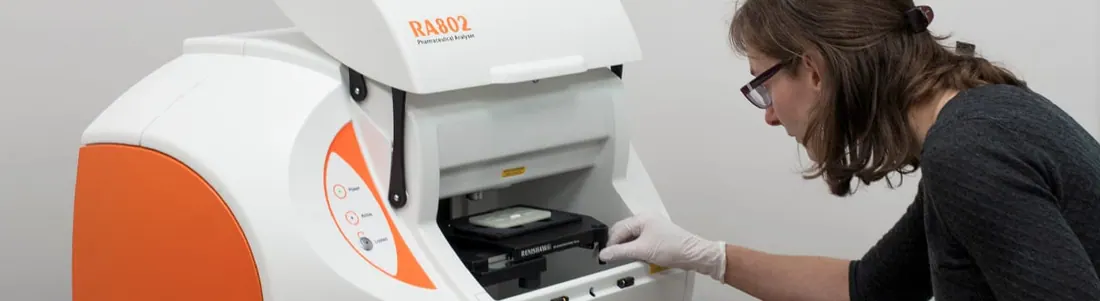

RA802 Pharmaceutical analyser
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A dedicated Raman imaging system for pharmaceutical formulation work. Using StreamLine rapid imaging and LiveTrack focus tracking it builds a chemical image of a tablet surface in as little as five minutes, showing how each component is distributed through the sample.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser wavelength | 785 nm |
| Laser power | greater than 150 mW at the sample |
| Imaging speed | 1,500 spectra per second |
| Spatial resolution | up to 1 um per pixel |
| Whole tablet map | from 5 minutes at low resolution to about 2 hours at highest resolution |
| Specification | Batch measurement automation with bespoke tablet holders |
