RLU compact laser unit with fibre optic delivery (RLU10 / RLU20)
Brand: Renishaw | Category: Nanotechnology

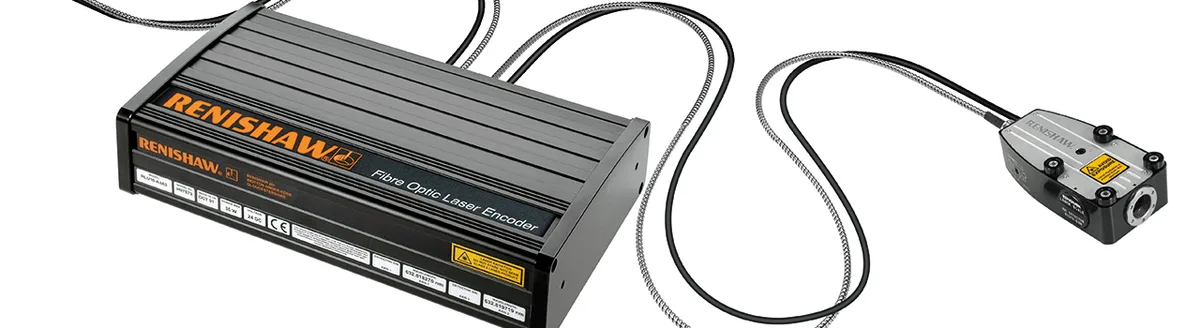

Renishaw's RLU laser units bring the performance of a displacement interferometer together with the installation ease normally associated with tape and glass scale encoders. Supplied in single or dual axis form, an RLU contains a class 2 helium neon (HeNe) laser source, stabilisation electronics, a fibre optic launch and axis position feedback electronics, and it is combined with one or two RLD detector heads to make up an RLE system. The RLU10 holds laser frequency stability within ±50 ppb over any one hour period, which suits the majority of in air applications, while the RLU20 holds ±2 ppb over the same period for the majority of vacuum applications. Both units support velocities up to 2 m/s and a vacuum wavelength stability of ±0.1 ppm over three years.
