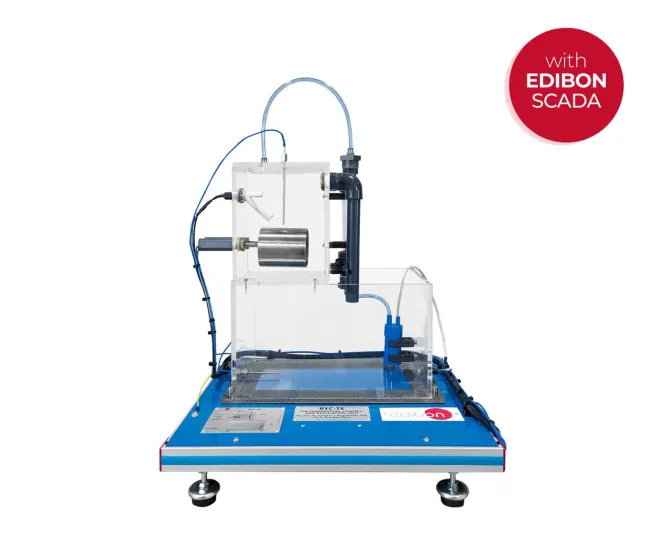

RYC-TE: PID Temperature Control and Regulation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers temperature control in a tank using a heating element and temperature sensors. Students analyse the thermal dynamics of the process, its response time and the stability of the loop under PID control.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 900 x 330 x 400 mm |
| Weight | 22 Kg approx |
| Natural frequency (w n) | 1Hz to 2 p*100 rad/s (100 Hz) |
| Power consumption | 1500 W |
| Control input voltage | +/-10 V |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
