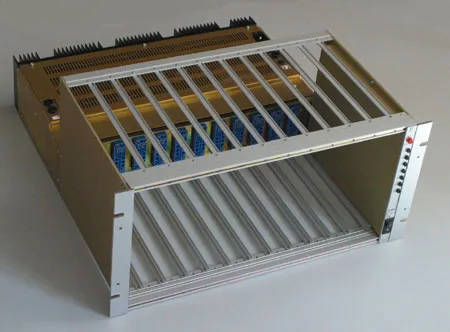

S-7029 NIM Bin with Power Supply
Brand: WissEl | Category: Nanotechnology
NIM bin with an integral 180 watt power supply, used to house the NIM modules of a Mossbauer spectrometer. Line voltage is selected by internal wiring change across two ranges, and the supply carries current limiting of the fold back type together with overvoltage protection on the 6 V rail. A pilot lamp gives a temperature warning.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Power rating | 180 W |
| Noise and ripple | Less than 3 mV peak-to-peak |
| Temperature stability | Better than 0.01% per °C, at 0–60 °C |
| Output regulation | Less than 0.05%; +6 V output: 0.5% |
| Temperature range | 0–50 °C; above 50 °C to 60 °C, derate 3% per °C |
Selected manufacturer power-supply data. Output-current limits are rail-specific; confirm the required NIM modules and mains wiring configuration rather than applying one rail’s rating to the complete supply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Exact host instrument/model and intended experiment
- Mechanical, electrical, optical or material compatibility as applicable
- Required dimensions/range, connectors, included parts and quantity
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about WissEl equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
