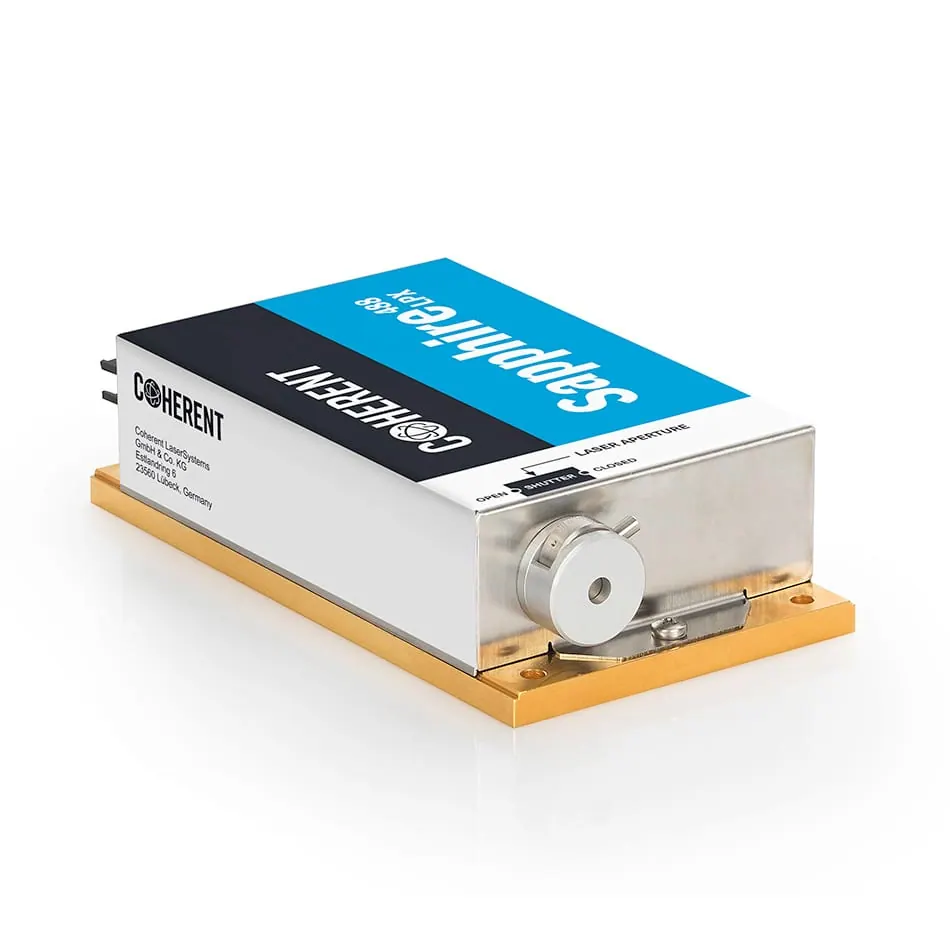

Sapphire
Brand: Coherent | Category: Scientific & Laboratory Equipment
Sapphire are continuous wave optically pumped semiconductor lasers with up to 1000 mW of low noise output across nine visible wavelengths. They are used in flow cytometry, confocal microscopy, DNA sequencing, Raman spectroscopy, interferometry, metrology and super-resolution imaging.
Technical Specifications
| Parameter | Value |
|---|---|
| Sapphire LP/LPX | up to 500 mW with modulation at 458, 488, 514, 532, 552, 561, 568, 588 and 594 nm |
| Sapphire XT | up to 1000 mW with integrated controller and modulation at 488, 532 and 561 nm |
| Sapphire SF NX | linewidth <1.5 MHz at 488 and 532 nm |
| Sapphire FP | fiber-pigtailed output |
| Specification | Sapphire CDRH Controller available for all wavelengths |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
