SCS/1000/CTS: Computer Controlled and Touch Screen 1000 l Semicontinuous Centrifugal Separator
Brand: EDIBON | Category: Scientific & Laboratory Equipment

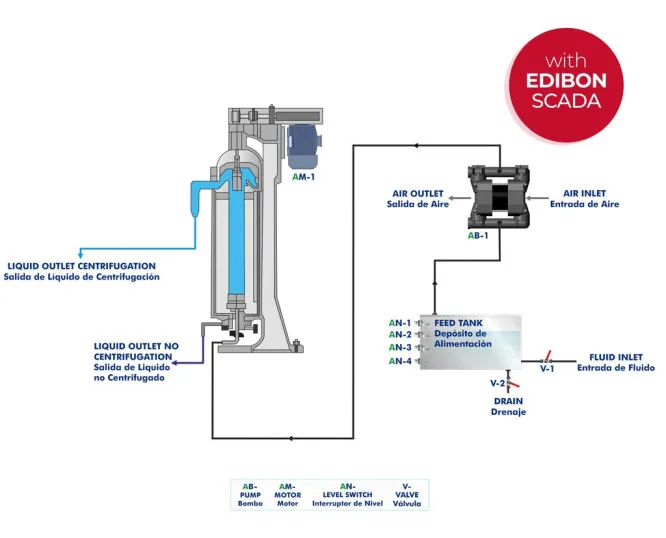

Designed by EDIBON, the Computer Controlled and Touch Screen 1000 l Semicontinuous Centrifugal Separator, "SCS/1000/CTS", is a pilot plant that demonstrates the obtaining of lignin from lignocellulosic biomass for further research and study.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Feed tank | 1,800 L polypropylene |
| Pneumatic feed-pump maximum flow | 0.062 m³/h |
| Tubular-centrifuge rotor speed | 14,000 rpm |
| Rotor volume | 10 L |
| Centrifuge hydraulic capacity | 1.5 m³/h |
Selected component values from the SCS/1000/CTS brochure. The feed pump and centrifuge have different published flow capacities; confirm the configured complete-system throughput, process fluid and utilities. The model name is not the feed-tank capacity. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Unit operations experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
