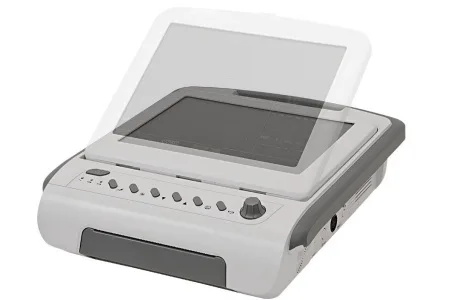

SK-EM005 Maternal and Child Health Monitoring Device
Brand: Saikang Medical | Category: Medical Equipment
A compact, lightweight body makes this maternal and child monitor easy to carry between maternity wards, obstetric departments, delivery rooms and prenatal examination areas. Its 12.1-inch colour LCD screen can be adjusted within a 90-degree range, and an ABS engineering plastic moulded shell on an aluminium-magnesium alloy bracket keeps the unit stable and shock resistant. A multi-chip waterproof ultrasound probe combines high sensitivity and strong anti-interference performance with a low ultrasonic dosage, while a built-in 152mm thermal array printer prints and stores real-time curves, parameter values and monitoring status. Dual AC/DC power supply, separate fetal and maternal display interfaces with shuttle rotary button operation, automatic and manual fetal movement counting, and alarms for fetal tachycardia, bradycardia, low battery and printer paper shortage complete the specification.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Heart rate range | Adults: 15bpm to 300bpm Newborns/children: 15bpm to 350bpm |
| Baseline recovery time | ＜3 seconds after defibrillation |
| Respiration rate range | Adults: (0-120) BrPM Children and newborns: (0-150) BrPM |
| Apnea alarm | (10-40)seconds |
| Measurement interval time in automatic measurement mode | 1-480 minutes |
| Measuring range systolic pressure | (60-240)mmHg |
| Diastolic pressure | (30-180)mmHg |
| Mean pressure | (40-200)mmHg |
| Static pressure range | (0-300)mmHg, static pressure accuracy: ±3 mmHg |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
