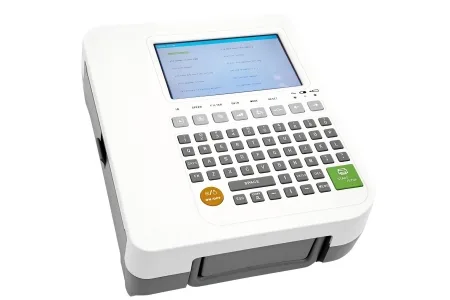

SK-EM103 12-Channel ECG
Brand: Saikang Medical | Category: Medical Equipment
Moulded from brand new ABS engineering plastic, this 12-channel electrocardiograph is built for everyday hospital cardiology work. It accepts a dual-use AC/DC power supply and carries a built-in rechargeable lithium battery, so recording can continue away from a mains point. A retractable handle keeps the unit comfortable to hold and easy to store between examinations.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Product weight | GW: 6kg, NW: 3.5kg |
| Leads | standard 12 leads |
| Sampling rate | 14 bits/1000Hz (12-lead synchronous acquisition) |
| Sensitivity | 10mm/mV (AUTO), 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV |
| Common Mode Rejection Ratio | ≥100dB (with AC filter) |
| Input loop current | ≤0.1μA |
| Translation: Patient leakage current | <10μA |
| Calibration voltage | 1mV ± 2% |
| Polarization resistance voltage | ≥±500mV |
| Time constant | ≥3.2s |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical use, required monitoring/therapy functions and patient group
- Compatible sensors, accessories, consumables and alarm/connectivity requirements
- Power/battery provision, clinical acceptance, training and maintenance
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
