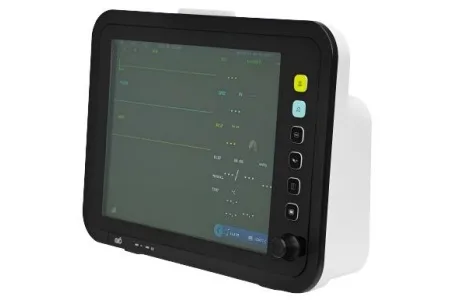

SK-EM402 12-Inch Patient Monitor
Brand: Saikang Medical | Category: Medical Equipment
An integrated structural design with streamlined functions, stable performance and strong anti-interference capability suits this 12-inch monitor to wards, emergency departments, ICUs and patient care areas. The 12.1-inch full-colour TFT LCD gives high-definition viewing across a 170 degree wide viewing angle, and an injection moulded ABS engineering plastic shell resists corrosion and cleans easily. Power comes from an AC100V-240V wide-voltage input with a built-in rechargeable lithium battery, and an automatic sound, light and screen three-level alarm flags abnormal readings. The operating interface can display ECG waveforms from channels 1 to 7 and show all 8 waveforms on the same screen, with Chinese and English options, large fonts and one-touch shuttle operation, plus patient information input, wired or wireless networking and USB and network interfaces for central monitoring.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Product weight | NW: 2.79kg |
| Product size | 340*245*134 mm |
| ECG（Lead configuration） | 6-pin, 5-lead ECG lead wires |
| ECG（Newborns/children） | 15 bpm to 350 bpm |
| ECG（Electrode polarization voltage range） | ±300mV |
| Respiration（Children and newborns） | (0-150) BrPM |
| Respiration（Apnea alarm） | (10-40) seconds |
| Non-invasive blood pressure (Pulse Rate Range) | (40-240)bpm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical use, required monitoring/therapy functions and patient group
- Compatible sensors, accessories, consumables and alarm/connectivity requirements
- Power/battery provision, clinical acceptance, training and maintenance
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
