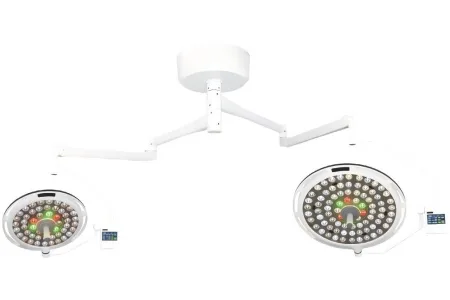

SK-LLD7050Z Shadowless Lamp
Brand: Saikang Medical | Category: Medical Equipment
A new type of LED cold light source pushes illuminance to 160,000 Lux with 9-level adjustment, while colour temperature covers 4000K-5000K with 4-level adjustment. A colour rendering index of 95 reflects the true colour of human tissues, which suits a range of surgical scenes and greatly reduces visual fatigue for staff during long operations. Temperature rise in the surgical field is held to 0.5 °C or less, avoiding tissue drying and rapid blood clots at the wound. The twin heads measure 700/530 ± 10mm and carry 81 + 51 OSRAM LEDs rated at 3W but used at 1W, with a lifespan of 50,000 hours and installation heights of 2800-3200mm.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Lamp head diameter(mm) | 700/530±10 |
| Illuminance at 1 meter(Lux) | 40,000-160,000 |
| Brightness adjustment | 9 levels |
| Spot diameter at 1 meter(mm) | 180-280 |
| Illumination depth(cm) | ≥120 |
| Surge in surgeon's head temperature(℃) | ≤1 |
| Surge in surgical field temperature(℃) | ≤0.5 |
| Number of LEDs | 81 + 51 |
| LED power(W) | Rated 3W, actual use 1W |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
