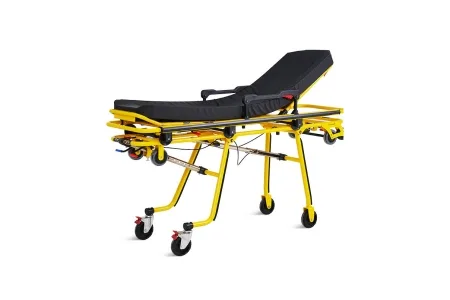

SKB039(H) Stretcher Trolley (SKC-3B4)
Brand: Saikang Medical | Category: Medical Equipment
Usability and multifunction are the stated design aims of this transfer trolley, which follows ergonomic principles to meet patient transfer requirements. A low-profile chassis structure lets it move along the ground and be lifted for walking. Flip-up guardrails made from high-density polymer plastic protect the patient throughout the transfer.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Unfoldingsize(L×W×H) | 1950×570×910mm(±10mm) |
| Foldingsize(L×W×H) | 2030×570×300mm(±10mm) |
| Heightadjustment | 78cm,87cm,91cm |
| Backrestangle | 0-75°(±5°) |
| Legangle | 0-15°(±5°) |
| Load capacity | ≤ 220KG |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Use, load requirement and overall dimensions against the room or transfer route
- Castors/brakes, surfaces, storage and required attachments
- Cleaning compatibility, assembly, power/battery needs where applicable and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
