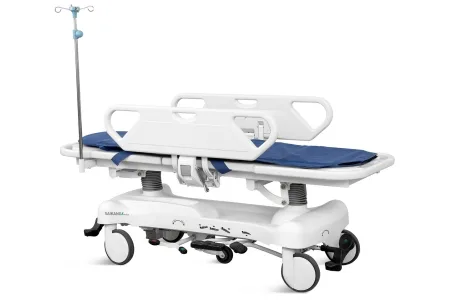

SKB041-2 Patient Transportation Trolley (SKV-BC)
Brand: Saikang Medical | Category: Medical Equipment
Two USA hydraulic pumps drive height adjustment together with Trendelenburg and reverse Trendelenburg positioning, and a hydraulic treadle raises the trolley. The brake spring remains qualified after 10,000 uninterrupted brake cycles.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size(LXW) | 1910×640 mm(±10 mm) |
| Table height adjustment | 650-960 mm(±10 mm) |
| Back plate adjustment | 0-75°(±10°) |
| Reverse Trendelenburg | 0-15°(±2°) |
| Trendelenburg | 0-15°(±2°) |
| Static Load Capacity | 250 kg |
| Dynamic Load Capacity | 135kg |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Use, load requirement and overall dimensions against the room or transfer route
- Castors/brakes, surfaces, storage and required attachments
- Cleaning compatibility, assembly, power/battery needs where applicable and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
