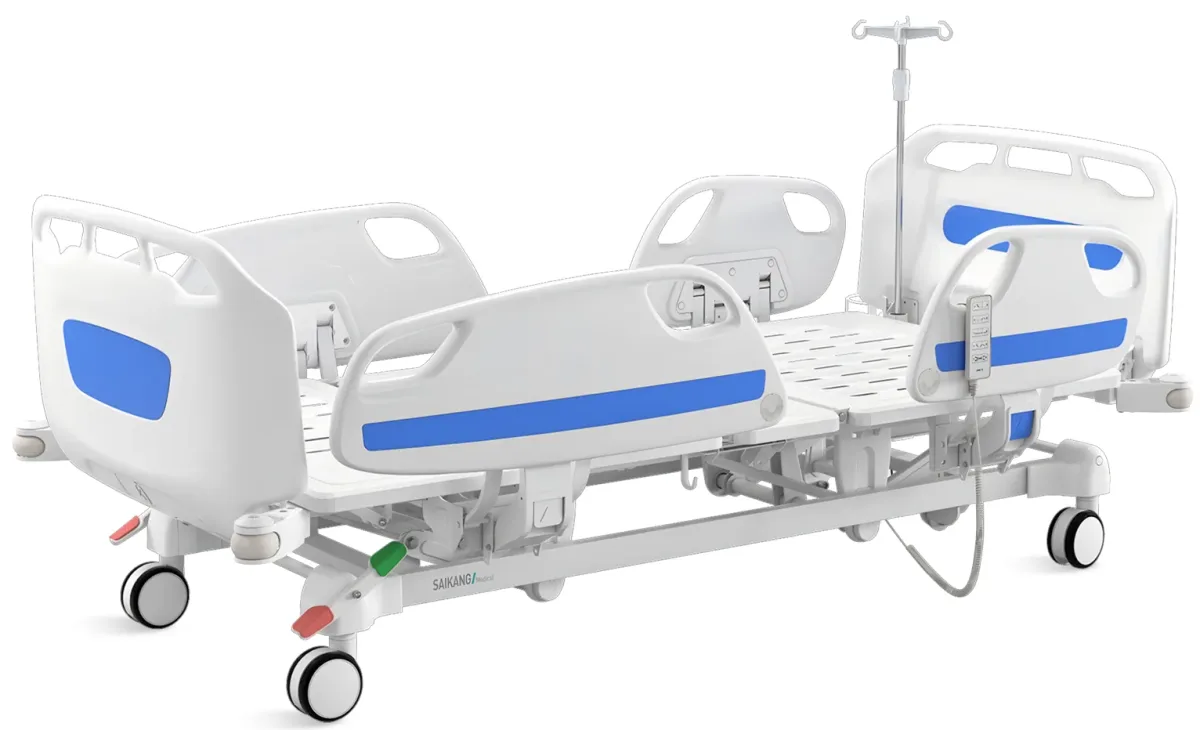

SKD-A Electric Hospital Bed
Brand: Saikang Medical | Category: Medical Equipment
A four motor electric ward bed running on LINAK actuators, with backrest, knee rest, height and tilt movements and a manual CPR release. PP Grace side rails carry an integrated angle indicator and the PP bed ends lock safely in place. Four 5 inch double side castors with central locking and four bumper wheels are fitted as standard.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External Size(L*W*H) | 2280*1090*435-725mm±10mm |
| Mattress Platform(L*W) | 1920*900±10mm |
| Back-rest Adjustment | 75°±10° |
| Knee-rest Adjustment | 35°±10° |
| Height Adjustment | 435-725mm±10mm |
| Reverse Trendelenburg | 12°±2° |
| Trendelenburg | 12°±2° |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
