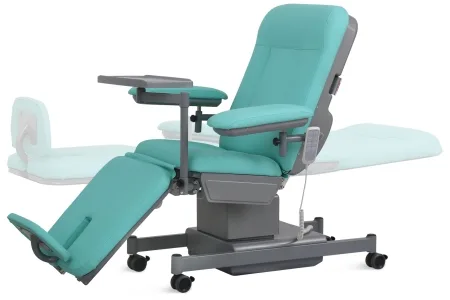

SKE-134 Electric Dialysis Chair
Brand: Saikang Medical | Category: Medical Equipment
The SKE-134 is an electric dialysis chair with published dimensions of 1930 x 580 mm. Backrest travel is -8 to 70 degrees, knee rest -50 to 0 degrees, and height adjusts between 550 and 700 mm with CPR provision. The footboard has 150 mm of adjustment and the armrests swing out to 180 degrees. Confirm the offered upholstery and manufacturer-approved cleaning instructions for the unit.
Plan your specification
Review the SKE-134 footboard and patient access
SKE-134 has published dimensions of 1930 x 580 mm and 150 mm of footboard adjustment. Check the offered configuration against your patient and room requirements.
- Leg support and usable space
- Demonstrate the footboard travel and knee adjustment with the intended patient range. Check the chair in its extended position with the dialysis machine and staff working space.
- Transfers and controls
- Review the height range, swing-out armrests, brakes and CPR function. Confirm the safe working load and the procedure for repositioning if mains power is interrupted.
- Upholstery and replacement parts
- Ask for the cleaning instructions for the exact upholstery and components offered. Include replacement covers, hand controls and maintenance support in the purchasing discussion.
Product documentation
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Size(LxW) | 1930 × 580 mm(±10mm) |
| Back | 780 × 580 mm(±10mm) |
| Seat | 480 × 580 mm(±10mm) |
| Leg | 580 × 530 mm(±10mm) |
| Foot board | 240 × 380 mm(±10mm) |
| Mattress thickness | 80 mm(±10mm) |
| Back-rest Adjustment | -8° - 70°(±5°) |
| Knee-rest Adjustment | -50° - 0°(±5°) |
| Height adjustment | 550 - 700mm(±10mm) |
| Foot board adjustable distance | 150 mm(±10mm) |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Treatment workflow, patient access and rated patient load
- Seat height, back/leg adjustment, positioning and required accessories
- Upholstery cleaning, power/battery arrangements and service requirements
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Chair quantity, room layout and machine arrangement
- Patient load, leg-support and transfer requirements
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
