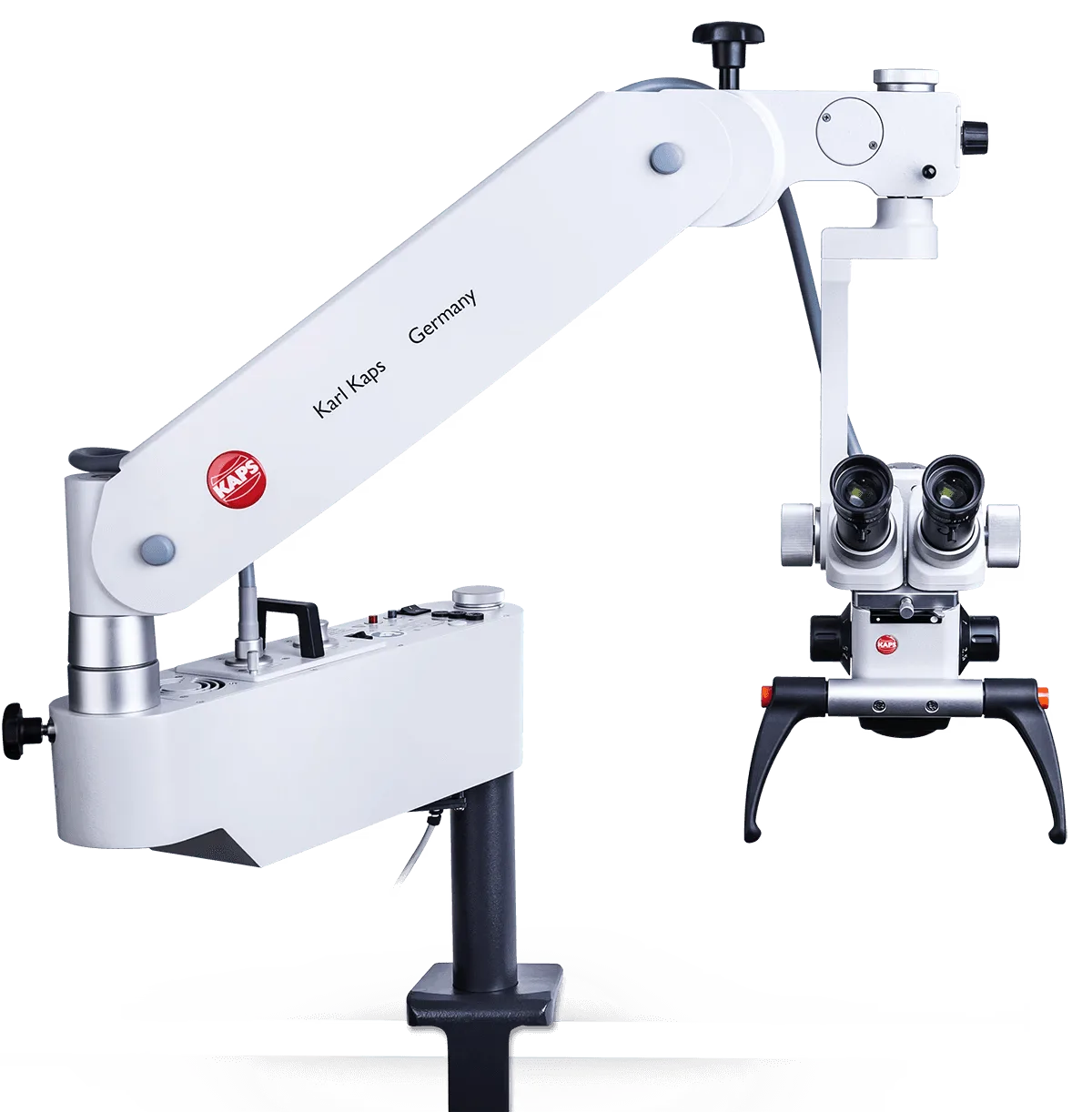

SOM® 82
Brand: Karl Kaps | Category: Medical Equipment
Kaps built the SOM 82 as a mobile incident light stereo microscope that travels to the work rather than the other way round. It clamps directly to a sturdy table or anchors on a bracket, and the continuously adjustable swivel and floating arms cover a generous working area from a single position. Magnification can be specified as a 3-step or 5-step changer or an optional manual 1:6 zoom, combined with wide-field eyepieces of 10x V, 12.5x V or 20x V and objectives from f = 100 to 400 mm in 50 mm steps. Training and education centres, dentistry, veterinary medicine, restoration and microsurgical exercises are the applications Kaps names, and an optional aluminium case allows compact storage and safe transport.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Magnification options | 3-step, 5-step or manual 1:6 zoom |
| Objective options | f = 100–400 mm in 50 mm steps |
| Fine-focus options | 12 mm or 40 mm manual |
| Eyepiece options | 10× V, 12.5× V or 20× V |
| Illumination | 15 V / 150 W cold light; LED optional |
Selected details from the named Karl Kaps product page. Optical performance and compatibility depend on the chosen objectives, eyepieces, illumination and mounting. Optional equipment is not included unless specified in the quotation. Checked 2026-09-29.
