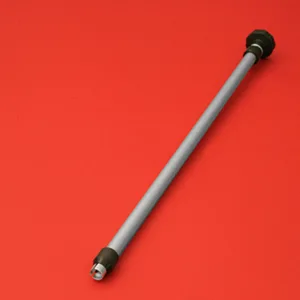

Source Gripper
Brand: WissEl | Category: Nanotechnology
Hand tool for lifting the Mossbauer source out of its lead container and screwing it onto the source adapter on the velocity transducer without touching the source. Three claws at the front end hold the source and an operating wheel at the rear works them, while a shield sits in front of the source once it is gripped. At roughly 380 mm the tool keeps the operator a safe distance from the source, and a shorter version is also made.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Standard version | 380 mm length; 100 g |
| Short version | 190 mm length; 50 g |
| Maximum front-part diameter | 16.5 mm |
Selected details from the explicitly named WissEl component. Confirm the ordered variant, compatible equipment and current manufacturer specification. Shielding dimensions do not establish suitability for a particular source or activity. Checked 2026-09-29.
