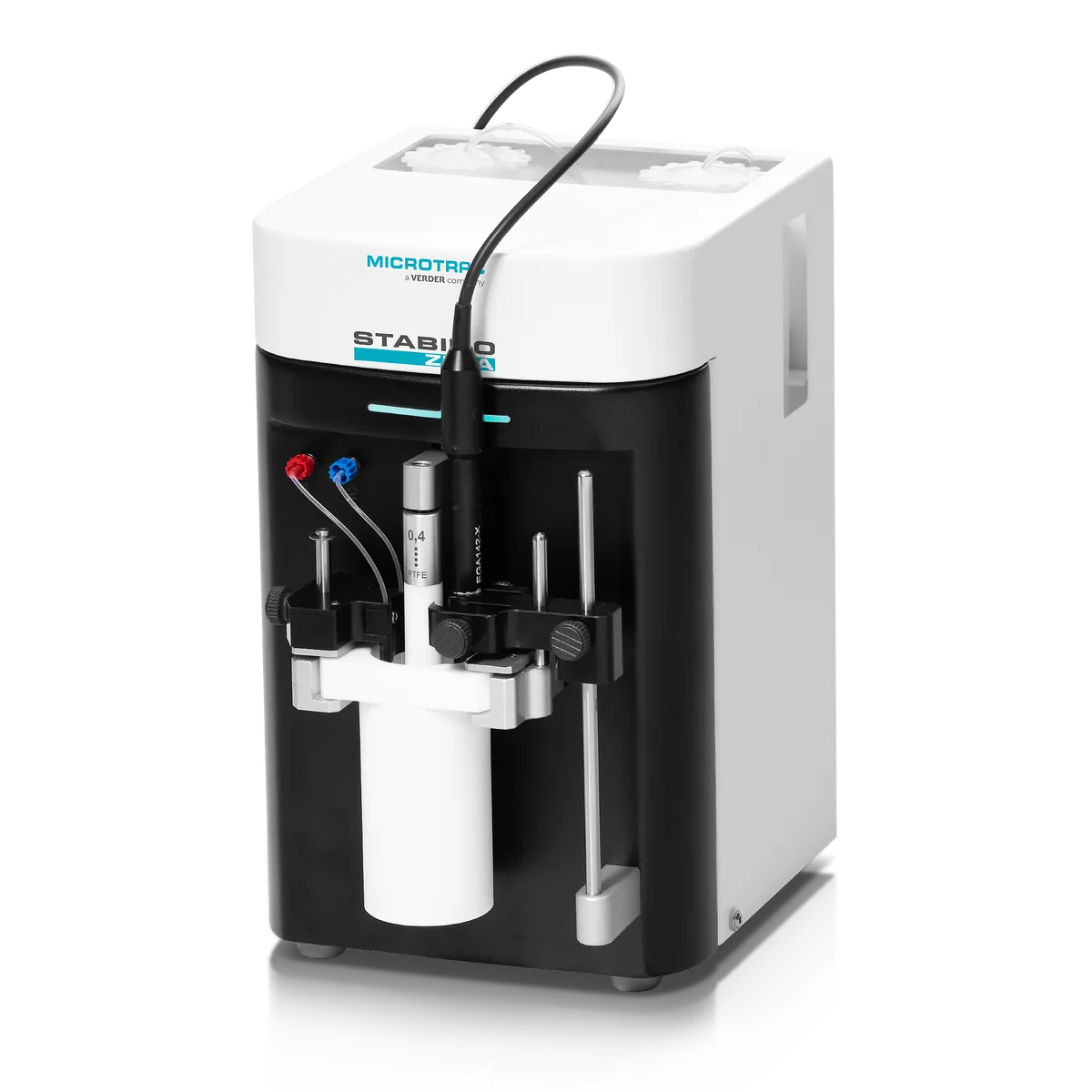

STABINO ZETA: Zeta Potential Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Zeta potential analyser based on the streaming potential principle, a mechanical measurement rather than an optical one, so it works on concentrated and opaque dispersions where electrophoretic light scattering fails. It performs fast titrations and measures pH and conductivity alongside charge.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Sample cell | Teflon (10 ml, 3 ml, 1 ml) |
| Zeta measurement range (charge) | -3000 mV - +3000 mV |
| Zeta measurement range (size) | 0.3 nm - 300 µm |
| pH measurement range | 1 to 14 |
| Conductivity range | Up to 350 mS cm^-1 |
| Temperature range | 0°C - 90°C |
| Temperature accuracy | ± 0.1°C |
| Sample volume zeta measurement | 0.95 ml - 10 ml |
| Sample concentration | Up to 40 % |
| Dimensions (W x H x D) | 180 x 300 x 260 mm |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
