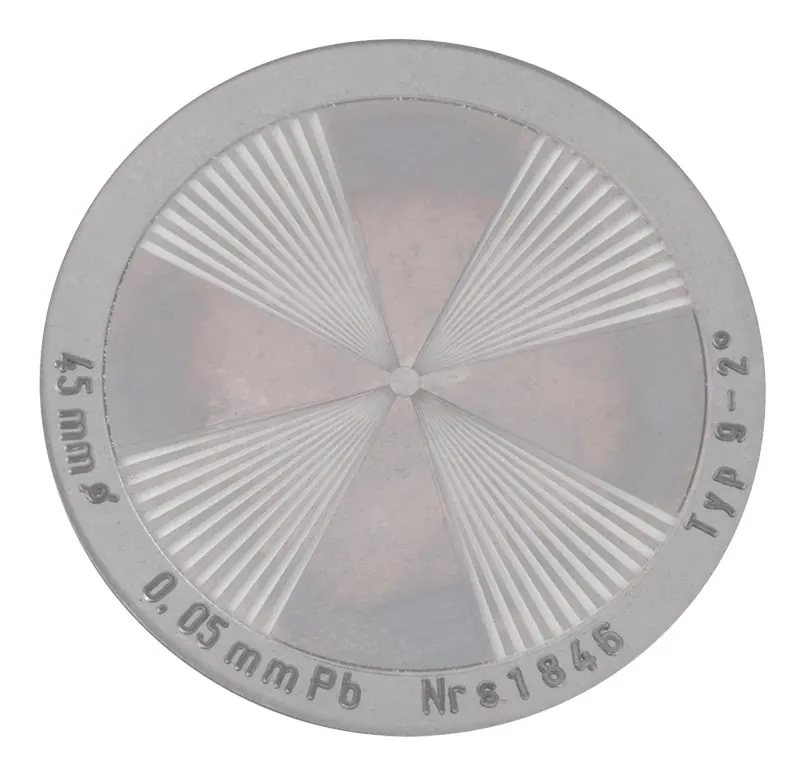

Star Patterns
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
X-ray star test patterns used with a focal spot jig to measure the effective focal spot size of an x-ray tube. The blur of the star spokes in the magnified image gives the focal spot dimension. They form part of the Leeds Test Objects range of x-ray test patterns.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | X-ray star test patterns |
| Specification | Used with the TO FSJ focal spot jig for focal spot measurement |
| Specification | X-ray test patterns user manual published by the manufacturer |
