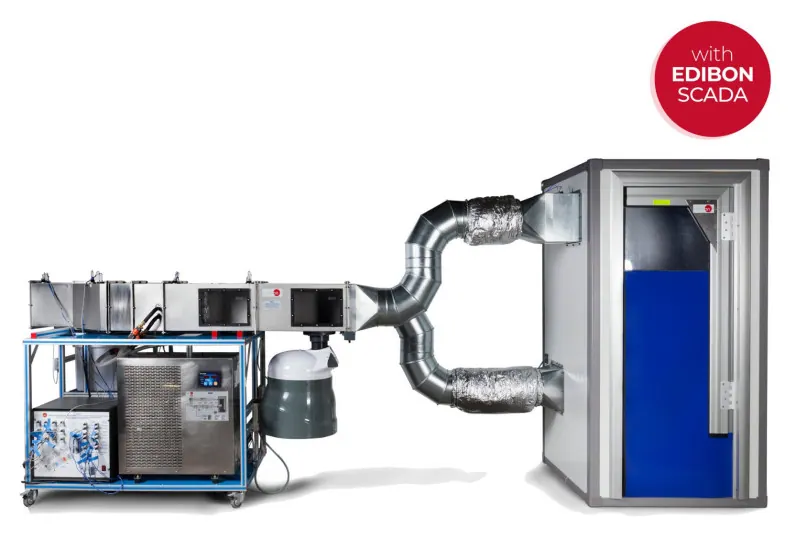

TACC: Computer Controlled Air Conditioning Unit with Climatic Chamber and Water Chiller
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Air conditioning duct with a chilled water coil, electric reheater and humidifier, discharging into a climatic chamber large enough for people. It allows the effect of each operating mode on human comfort to be assessed and the chiller capacity to be quantified.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Square section stainless steel tunnel with windows for visualising the process |
| Specification | Computer controlled variable speed fan, water chiller, recycling pump and water tank |
| Specification | Computer controlled electric heating element and humidifier |
| Specification | Climatic chamber suitable for persons, with adjustable air recycling duct |
| Specification | Six measuring points, five along the tunnel and one in the chamber, each with hygrometer and humidity sensor |
| Specification | Two air flow sensors for the outside and recycled air streams |
