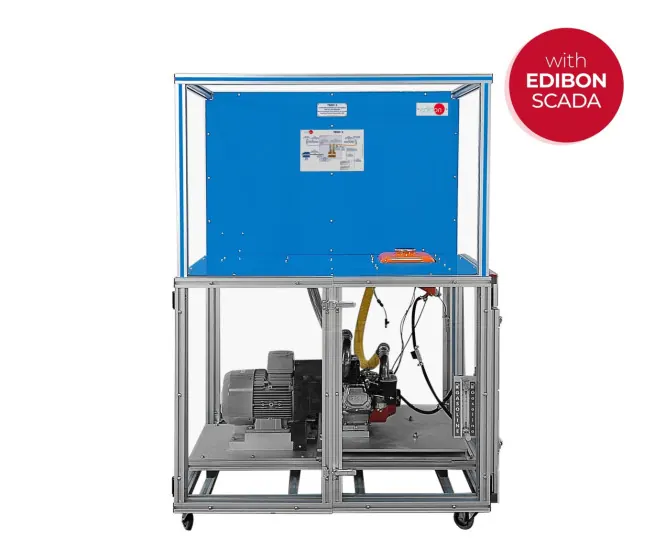

TBMC3: Computer Controlled Test Bench for 2.2 kW Engines
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Engine test bench for internal combustion engines of up to 2.2 kW, braked by an asynchronous motor fed from a variable frequency drive. Setting the accelerator and varying the braking torque produces the torque and power against speed characteristic curves.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Tests internal combustion engines of up to 2.2 kW |
| Specification | Braking torque from an asynchronous motor fed by a variable frequency drive |
| Specification | Motor shaft coupled to the engine shaft by an elastic coupling |
| Specification | Start system, fuel supply system, air intake system and exhaust gas removal system |
| Specification | Air cooling through the fins of the engine |
| Specification | Engine options TM3-01 to TM3-05 cover petrol, diesel, variable compression, two stroke and petrol with LPG |
