TCCC: Computer Controlled Heat Conduction Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

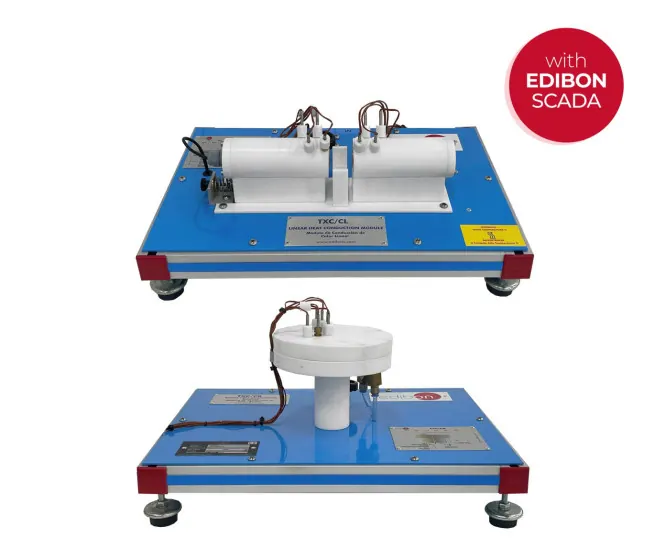

Two electrically heated modules, one with a cylindrical metal bar for linear conduction and one with a metallic disc for radial conduction. Interchangeable samples let students measure thermal conductivity and study area effects, series combinations and insulation.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Linear conduction module with interchangeable samples of different materials, diameters and insulators |
| Specification | Radial conduction module with six temperature tappings along the disc radius |
| Specification | High precision type T temperature sensors on both modules |
| Specification | Heating element power variable from 0 to 100 per cent through the computer |
| Specification | Water cooling with regulation valve, flow sensor and inlet and outlet temperature sensors |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
