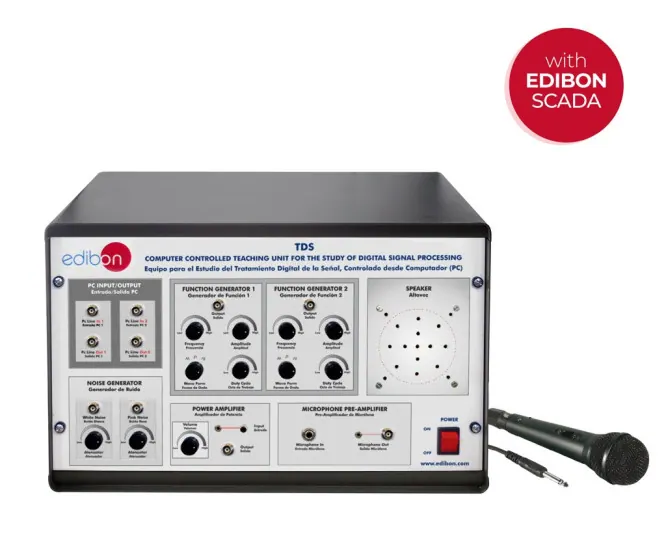

TDS: Computer Controlled Teaching Unit for the Study of Digital Signal Processing
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A computer controlled unit for digital signal processing, covering continuous waveform generation, signal digitisation, fast Fourier transform display and simultaneous work with two external signals. Students analyse the nature of signals and the effect of sampling.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 490 x 330 x 310 mm |
| Weight | 30 Kg approx |
| Frequency potentiometer, range | 20 Hz to 20 KHz |
| Amplitude potentiometer, range | +/-10 V |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
