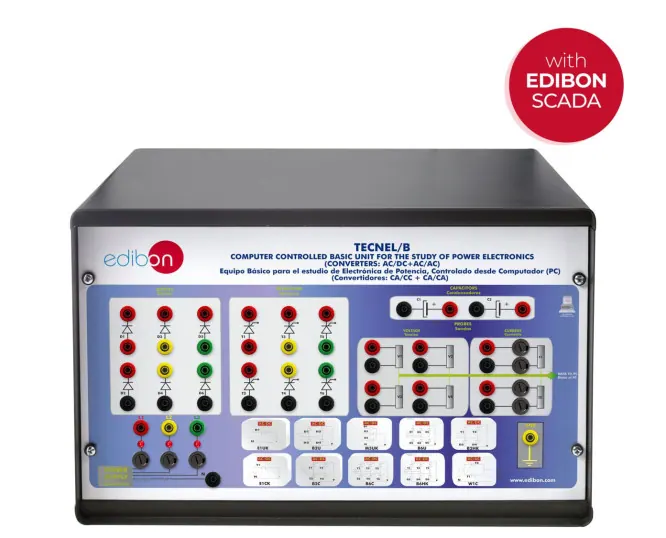

TECNEL/B: Computer Controlled Basic Teaching Unit for the Study of Power Electronics (no IGBTS). (Converters: AC/DC+AC/AC)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A computer controlled unit for the basics of power electronics without IGBTs, covering AC to DC and AC to AC conversion. The SCADA software records the waveforms and lets control parameters be varied while the converter is running.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase with neutral and ground, 380 VAC |
| Dimensions | 490 x 330 x 310 mm |
| Weight | 40 Kg approx |
| Maximum power | 500 W |
| Nominal power | 300 W |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
