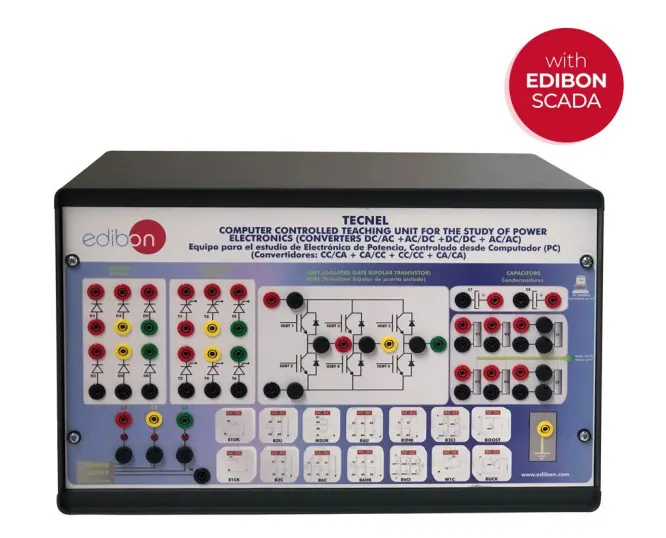

TECNEL: Computer Controlled Teaching Unit for the Study of Power Electronics (with IGBTS)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A computer controlled power electronics unit with IGBTs covering AC to DC, DC to DC and AC to AC conversion. Students vary the control parameters while the converter runs and the SCADA software captures the resulting voltage and current waveforms.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase with neutral and ground, 380 VAC |
| Dimensions | 490 x 330 x 310 mm |
| Weight | 40 Kg approx |
| Nominal power | 300 W |
| Armature voltage | 200 VDC |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
