Temperature Probes
Brand: Lake Shore | Category: Nanotechnology

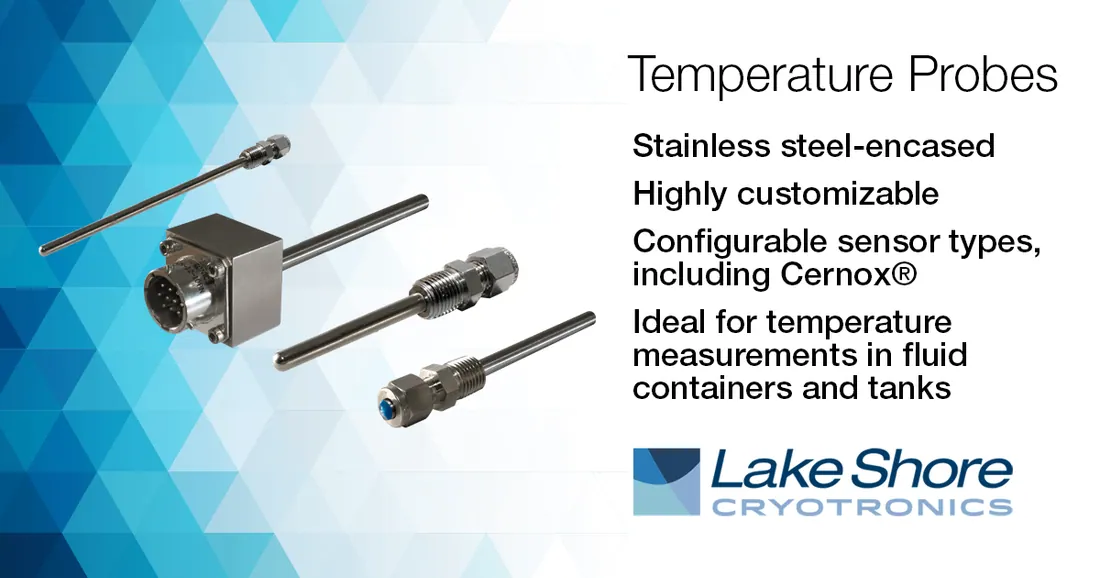

Lake Shore cryogenic temperature probes seal a sensor inside a stainless steel stem so it can be used in a thermowell or in direct contact with a cryogen. Stems are 316 stainless steel in 1/4 in and 1/8 in sizes, up to 28 in long. Several cable and connector options are offered.
Technical Specifications
| Parameter | Value |
|---|---|
| Stem sizes | 1/4 in and 1/8 in |
| Wall thickness | 0.028 in +/-0.003 in (1/4 in stem), 0.010 in +/-0.001 in (1/8 in stem) |
| Maximum length | 28 in (1/4 in stem), 20 in (1/8 in stem) |
| Material | 316 stainless steel |
| Thread | 0.25 in NPT male (1/4 in probe), 0.125 in NPT male (1/8 in probe) |
| Connector options | 2-lead or 4-lead BNC, 6-pin DIN, 25-pin D-sub, 10-pin Detoronics |
