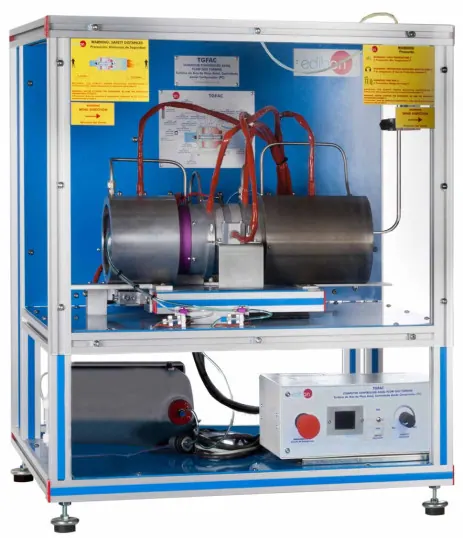

TGFAC: Computer Controlled Axial Flow Gas Turbine/ Jet Engine
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Axial flow gas turbine working as an open cycle jet engine. Compressed air is burnt in an annular combustion chamber, the gases give up energy in the axial turbine and are then expanded through the nozzle to ambient pressure to generate thrust.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Axial compressor supplied with atmospheric air |
| Specification | Annular combustion chamber where fuel is added to the compressed air |
| Specification | Axial expansion turbine coupled on the same shaft as the compressor |
| Specification | Rotor and stator discs with vanes in both compressor and turbine |
| Specification | Open cycle process, air taken from and expelled to the environment |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
