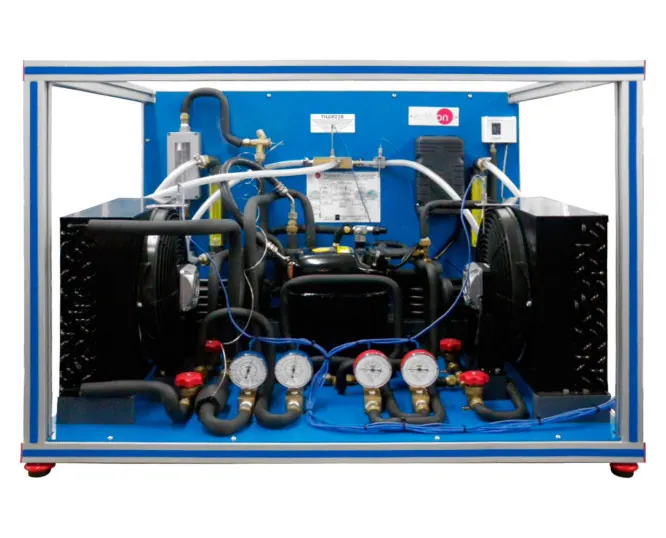

THAR22B: Heat Pump + Air Conditioning + Refrigeration with 2 Condensers and 2 Evaporators (Water/Air)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
One circuit serving three applications, with the refrigerant able to pass through either an air or a water condenser and either an air or a water evaporator. Students compare operating parameters for each combination of hot and cold source.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Air condenser and water condenser selectable by valves |
| Specification | Air evaporator and water evaporator selectable by valves |
| Specification | Manometer and temperature sensor at each stage of the cycle |
| Specification | Accumulator, filter and flow meter before the expansion valve |
| Specification | Liquid separator before the compressor inlet |
| Specification | Computer controlled version available as THAR22C |
