THz-Raman Filter Components
Brand: Coherent | Category: Nanotechnology

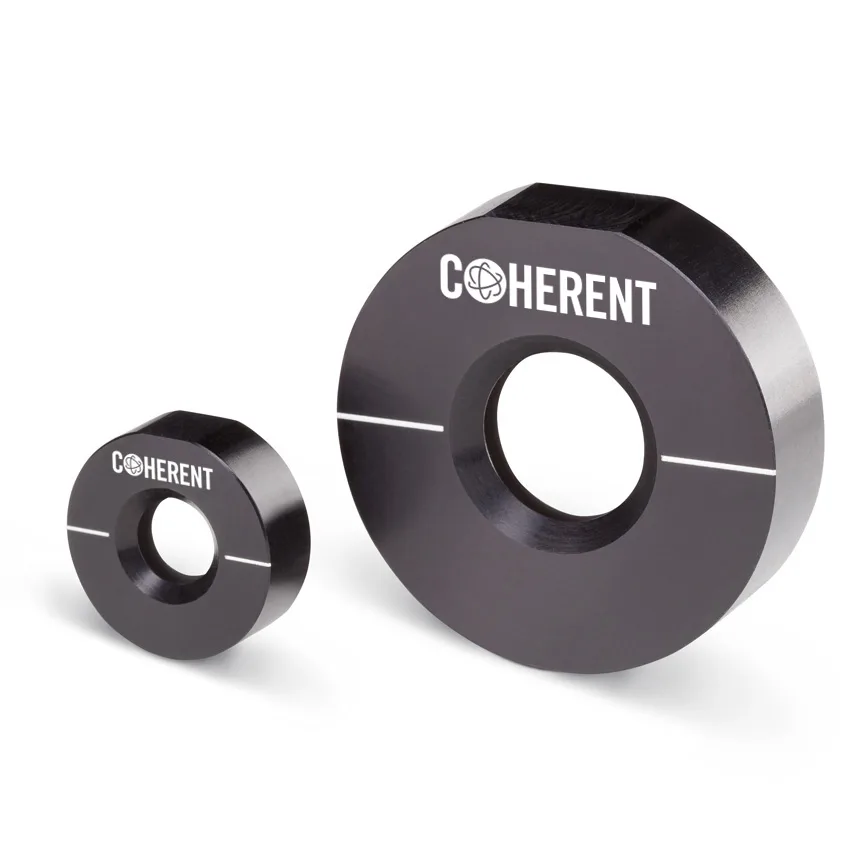

Coherent supply three pre-mounted filter types for THz-Raman spectroscopy: SureBlock notch filters, NoiseBlock 90/10 beamsplitter filters and NoiseBlock ASE filters. They are described as compact and economical components that improve on thin film and gel filters, and all three are angle tunable, environmentally stable and do not degrade over time. The published wavelength set is 488, 514, 532, 633, 785, 830 and 1064 nm. Coherent note that the notch filters need a compatible wavelength stabilised, collimated, ASE-free laser for optimal performance.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Component | Diameter | Clear aperture |
|---|---|---|
| SureBlock notch filter | 25.4 mm | 9 mm |
| NoiseBlock 90/10 beamsplitter filter | 25.4 mm | 9 mm |
| NoiseBlock ASE filter | 12.7 mm | 4.5 mm |
Manufacturer catalogue checked 2026-09-29.
Manufacturer dimensions are separated by filter type. Choose wavelength, optical density or diffraction efficiency, operating angle and a compatible laser separately; a notch filter and an ASE filter are not interchangeable.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Exact host instrument/model and intended experiment
- Mechanical, electrical, optical or material compatibility as applicable
- Required dimensions/range, connectors, included parts and quantity
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
