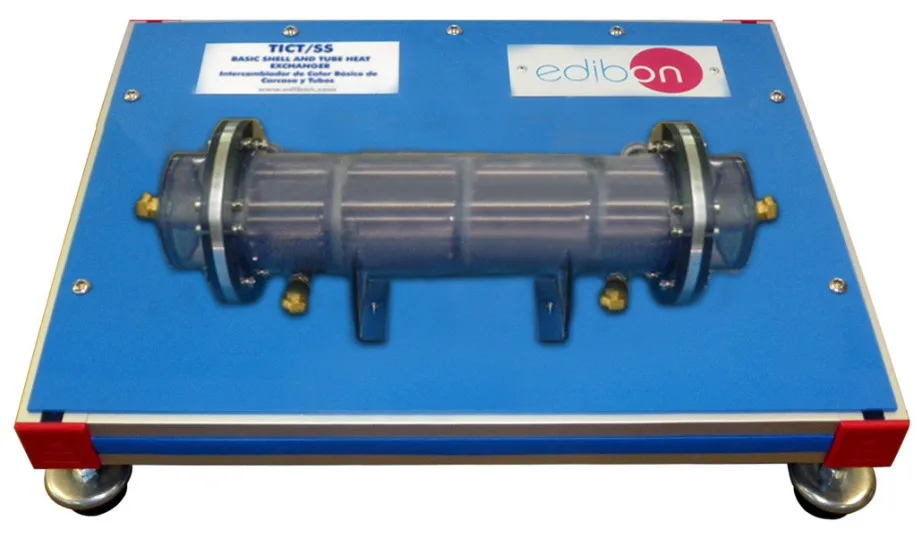

TICT/SS: Basic Shell and Tube Heat Exchanger
Brand: EDIBON | Category: Scientific & Laboratory Equipment
TICT/SS is a basic shell and tube heat exchanger unit within EDIBON's heat exchangers range. It is used alongside related units such as the TIPL/SS basic plate heat exchanger and the TICC computer controlled heat exchangers training system, among further exchanger types in the family. It suits introductory laboratory work on heat transfer.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Number of tubes | 7 |
| Tube internal diameter | 5 mm |
| Tube wall thickness | 1 mm |
| Shell internal diameter | 50 mm |
| Heat-transfer area | 0.02 m² |
| Required base | TIUS/SS |
Selected data for the named module from the manufacturer brochure. Confirm the complete configuration, required base equipment, utilities and supplied accessories in the quotation. Component ratings are not whole-system operating limits. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Heat transfer experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
