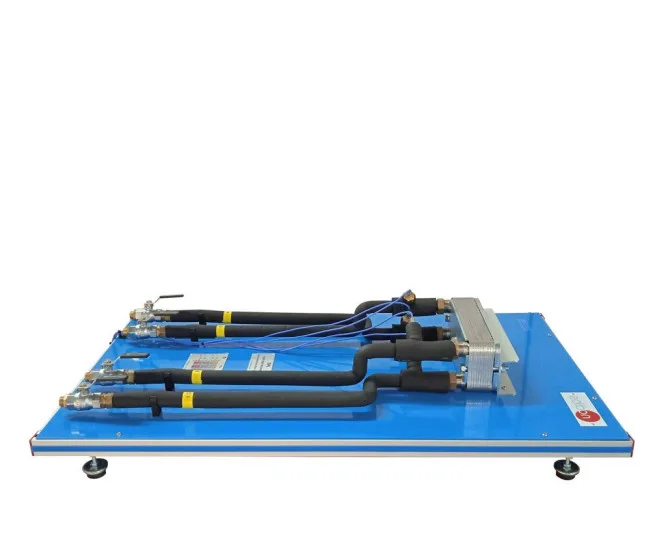

TIPLAB: Extended Plate Heat Exchanger for TICB
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Designed by EDIBON, the "TIPLAB" Expanded Plate Heat Exchanger for TICB enables detailed study of heat transfer between hot and cold water flowing through alternate channels formed between parallel plates. Analysis of heat transfer variation under different conditions, such as changes in flow rate, temperature, and flow type (counterflow or parallel), is facilitated by this unit.
Published installation data
| Parameter | Value |
|---|---|
| Unit dimensions | 1200 × 700 × 320 mm approx. |
| Unit weight | 25 kg approx. |
Selected installation data for TIPLAB from the manufacturer brochure, page 15. Dimensions and weight are approximate and refer to this named unit or module, not the complete laboratory. Confirm operating specifications, base equipment, utilities and supplied accessories in the quotation. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Heat transfer experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
