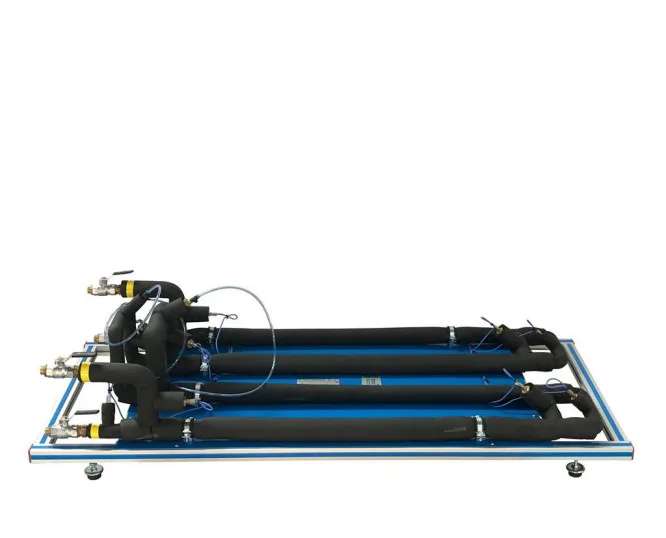

TITCAB: Extended Concentric Tube Heat Exchanger for TICB
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Designed by EDIBON, the "TITCA" Expanded Concentric Tube Heat Exchanger for TICB allows for detailed study of heat transfer between two fluids, the hot water flowing through an inner tube and the cold water circulating in the annular space between the inner and outer tubes. How heat transfer varies under different conditions, such as changes in flow rate, temperature, and type of flow (counter-current or parallel), can be analysed with this unit. Its tube length of 4 metres, greater than other heat exchangers, gives the Expanded Concentric Tube Heat Exchanger for TICB more measurement points along the same length, expanding its analytical and experimental capabilities.
Published installation data
| Parameter | Value |
|---|---|
| Unit dimensions | 1500 × 700 × 320 mm approx. |
| Unit weight | 30 kg approx. |
Selected installation data for TITCAB from the manufacturer brochure, page 15. Dimensions and weight are approximate and refer to this named unit or module, not the complete laboratory. Confirm operating specifications, base equipment, utilities and supplied accessories in the quotation. Checked 2026-09-29.
