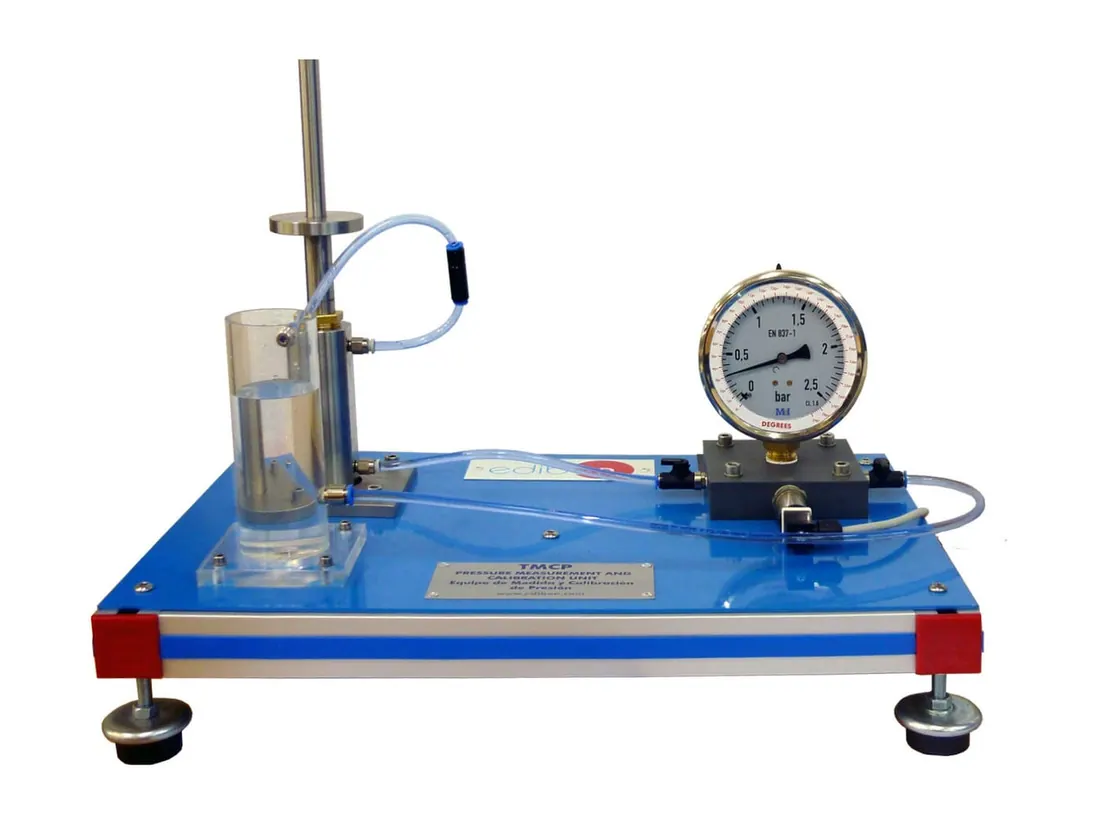

TMCP: Pressure Measurement and Calibration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
TMCP is a bench unit for pressure measurement and calibration. It combines a dead weight tester with mechanical and electronic gauges, so students can calibrate instruments and study hysteresis and linearity errors.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 500 x 350 x 350 mm approx |
| Weight | 15 Kg approx |
| Dead-weight calibrator diameter of the piston | 18 mm |
| Dead-weight calibrator two area of the piston | 0.000254469 m |
| Dead-weight calibrator weight of the piston | 0.5 Kg |
| Specification | 0.5 Kg, 1 Kg, 2.5 Kg, 5 Kg |
