TO HVL Filters
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

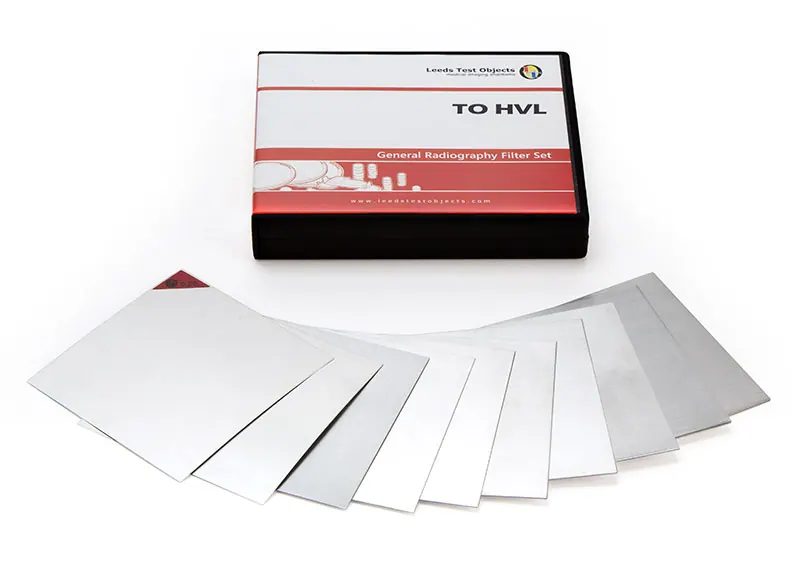

Aluminium filter sets used with the TO HVL filter stand to measure the half value layer of an x-ray system. Three sets are offered for general radiography, standard mammography and high purity mammography work.
Technical Specifications
| Parameter | Value |
|---|---|
| General radiography | 99.5% Al, 100 x 100 mm, 2 x 2.0 mm, 3 x 1.0 mm, 3 x 0.5 mm and 2 x 0.25 mm |
| Standard mammography | 99.5% Al, 100 x 100 mm, 1 x 0.2 mm and 5 x 0.1 mm |
| High purity mammography | 99.9% Al, 100 x 100 mm, 6 x 0.1 mm |
| Specification | Supplied in a protective carry case |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
