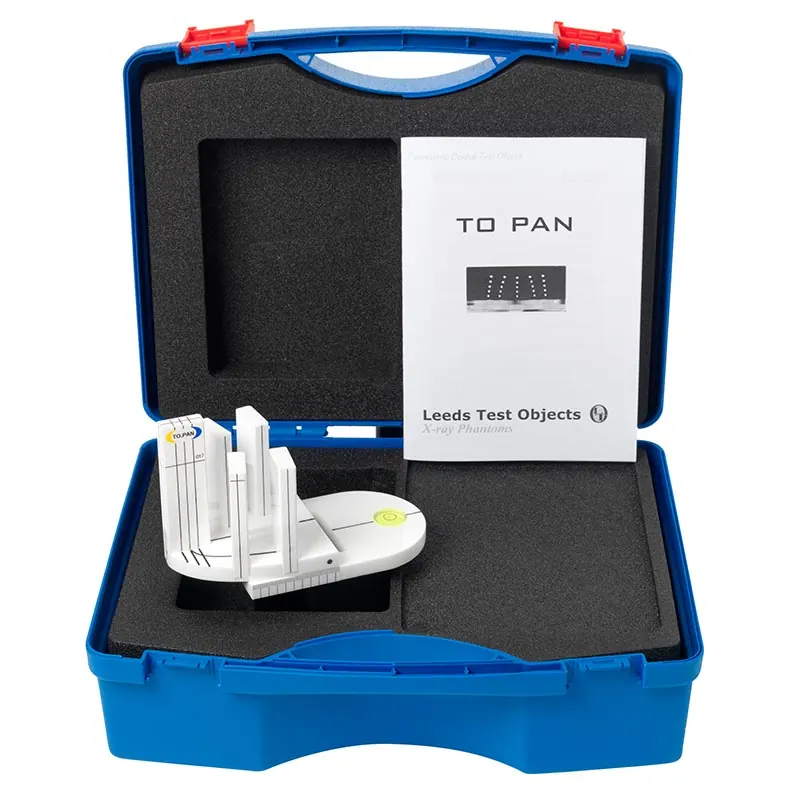

TO PAN
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A dental phantom that quantifies the complex focal trough of a panoramic x-ray unit, allowing a full assessment of the parameters that affect image quality. It works with both film and digital systems and comes with a tripod for universal positioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Quantification of the focal trough and image layer |
| Specification | Accurate determination of the bite offset |
| Specification | Quantification of the symmetry of the scan |
| Specification | Measurement of the incident beam angles |
| Specification | Spatial resolution testing, test patterns available separately |
| Specification | Supplied with a tripod for universal positioning |
