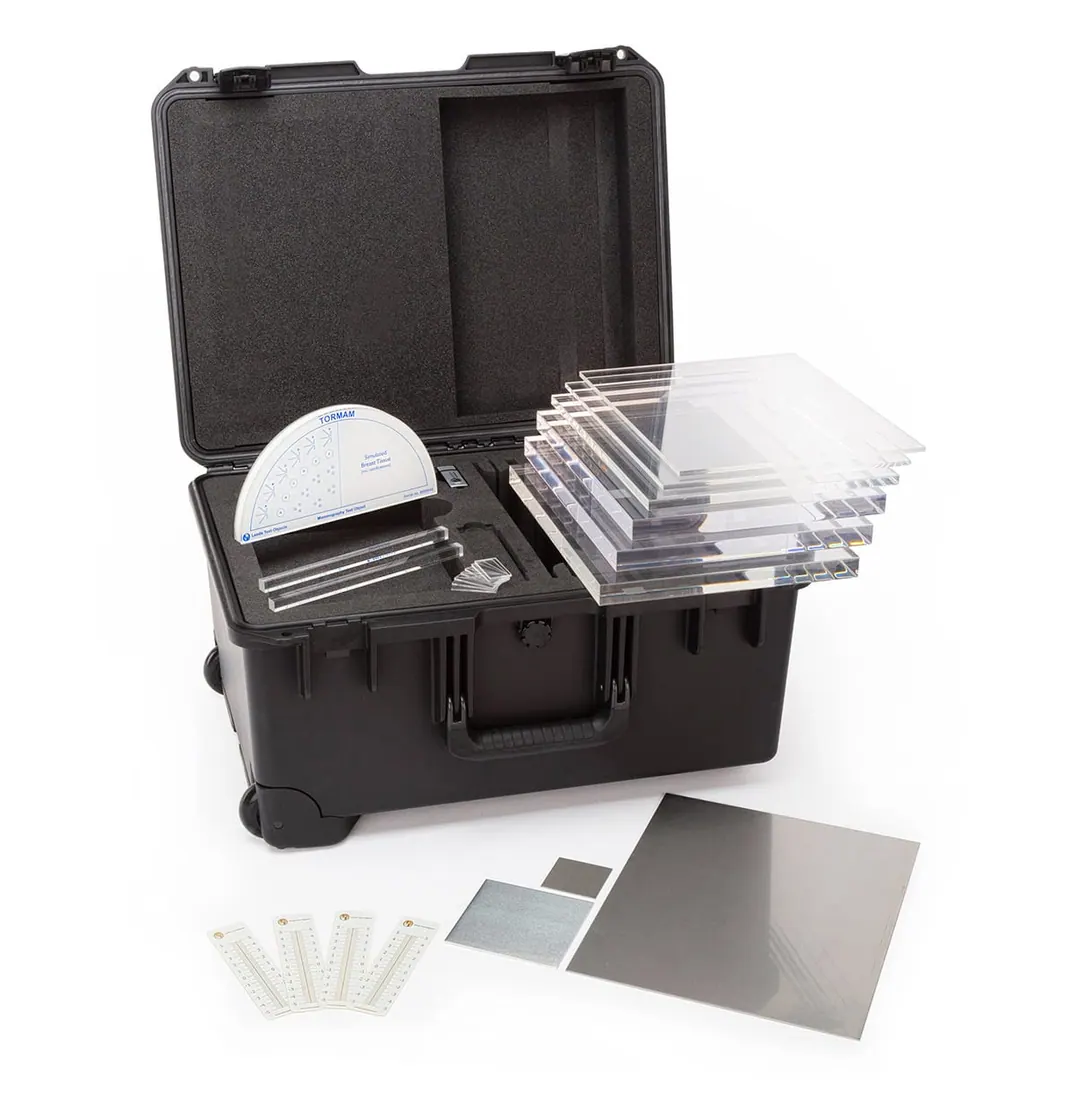

TOMO IQ
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A complete phantom set for testing tomosynthesis mammography systems, designed to the EUREF breast tomosynthesis protocol. It combines the graded PMMA stack and Z resolution plate with a TORMAM phantom, NPS aluminium filter, MTF steel edge and x-ray rulers.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | PMMA plates 300 x 240 mm produced to 1% thickness tolerance, including a 5 mm plate with 25 embedded 1 mm spheres |
| Specification | 20 mm plate with embedded 99.99% Al foil, 0.20 x 10 x 10 mm |
| Specification | Includes TORMAM phantom, NPS aluminium filter 2 x 100 x 100 mm and MTF stainless steel edge 1 x 50 x 50 mm |
| Specification | Stainless steel protective filter 2 x 300 x 240 mm and 4 x-ray rulers |
| Specification | Tests AEC, detector homogeneity, geometric distortion, SNR, CNR, image resolution and Z resolution |
| Specification | Conforms to the EUREF Protocol Breast Tomosynthesis Quality Control Protocol Version 1.0 |
