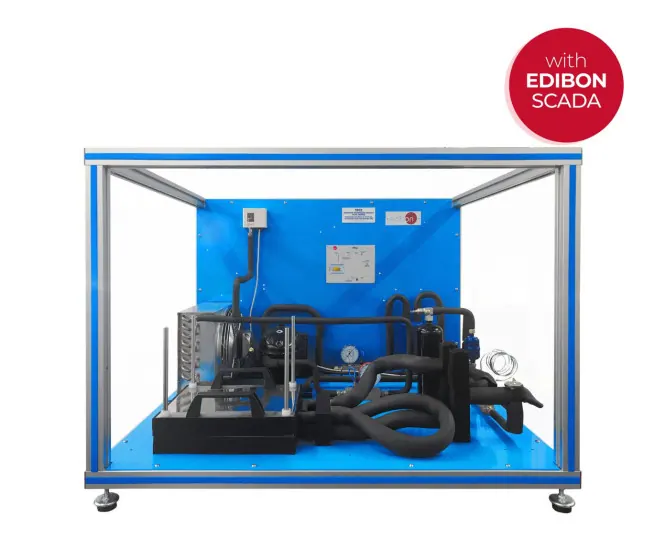

TPCC: Computer Controlled Contact Plate Freezer
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Compression refrigeration circuit whose evaporator is a contact plate freezer, used to freeze packaged food quickly by an industrial method. Several probes can be placed in the product so the freezing front can be followed through the process.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Contact plate freezer evaporator with two freezing plates of 305 x 178 mm |
| Specification | One fixed plate and one adjustable in height through two handles |
| Specification | Hermetic compressor, condenser with computer controlled fan and expansion valve |
| Specification | Two temperature sensors and manometers at the compressor inlet and outlet |
| Specification | One plate temperature sensor plus five movable sensors for the food product |
| Specification | Sight glass, filter, storage tank, liquid separator and high pressure switch |
