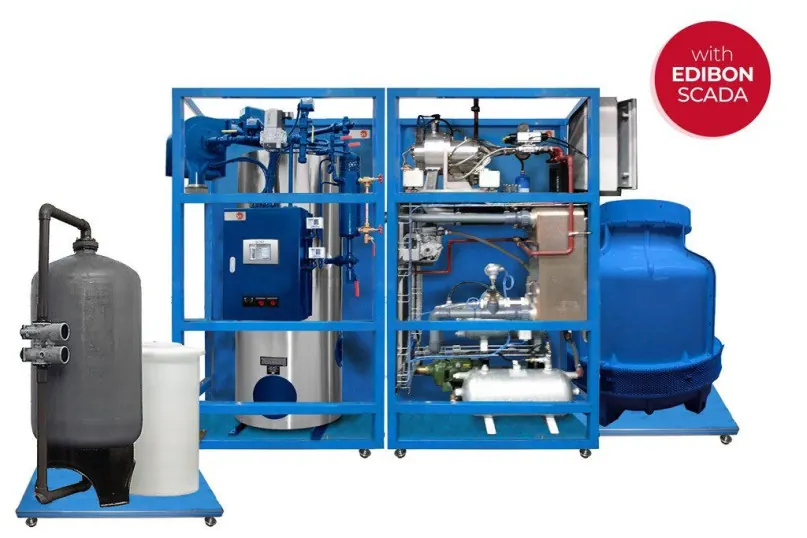

TPTV/20kW/CTS: Computer Controlled and Touch Screen 20 kW Steam Power Plant
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Steam power plant of 20 kW built to the same layout as a real generating station, with water softening, steam raising, expansion and condensate return. Level switches and automatic valves manage filling so the plant can be run through complete cycles.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Rated output of 20 kW |
| Specification | Requires the TPTV/20kW-WS water softener, the TPTV/20kW-CT cooling tower and a steam generator |
| Specification | Steam generator options are the TPTV/20kW-SGA water tube or the TPTV/20kW-SGP fire tube unit |
| Specification | Water softener uses a 40 l ion exchange resin column to remove water hardness |
| Specification | Liquid separator removes suspended droplets before the steam is superheated |
| Specification | Proportional valve throttles the steam flow over a wide operating range |
