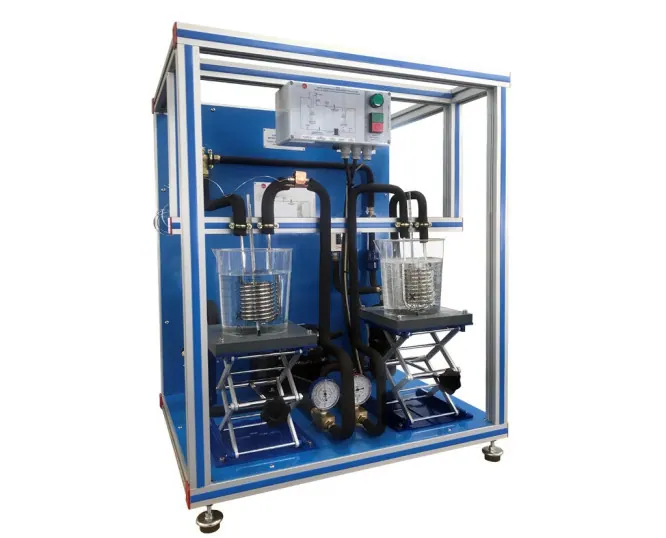

TSCR: Simple Compression Refrigeration Circuit Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Basic compression refrigeration system in which the evaporator and condenser are copper coils immersed in water filled tanks that stand in for the surroundings. It suits introductory work on the vapour compression cycle and simple energy balances.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Evaporator and condenser built as copper pipe coils immersed in water filled tanks |
| Specification | Thermostatic expansion valve as the expansion element |
| Specification | Sight glass before the expansion valve to view the refrigerant state |
| Specification | Two thermometers measure the water temperature in the tanks |
| Specification | Two manometers for the high and low pressure sides, with an evaporation temperature scale |
| Specification | Pressure switch stops the compressor if the pressure is high |
