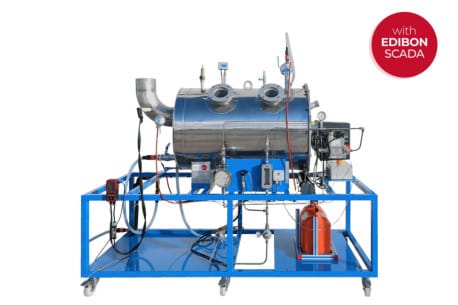

TVCC: Computer Controlled Combustion Laboratory Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Burner and water cooled combustion chamber for the study of liquid and gaseous fuel combustion. Students vary the air to fuel ratio and measure its effect on flame characteristics, combustion efficiency, flue gas composition and the energy balance.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Burner operates on fuel oil, diesel or gas oil, or on natural gas or LPG |
| Specification | Stainless steel water cooled combustion chamber with five observation points of 100 mm |
| Specification | Burner fan with differential pressure sensor, thermocouple and air flow regulator |
| Specification | Flame detection sensor and ignition controller |
| Specification | Manual digital flue gas analyser measures O2, CO, CO2, CO to CO2 ratio and air excess |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Thermodynamics Lab
- TVPLC: Computer Controlled Flame Propagation and Stability Unit
Vertical burner unit that produces different flame types by varying the fuel and comburent mixture, so that gaseous fuels can be compared. A separate propagation accessory lets students watch a flame travel along a transparent hose ignited by a spark plug.
- TSPC: Computer Controlled Saturation Pressure Unit
Water boiler with a sight glass and a throttling calorimeter, used to measure the relationship between saturation temperature and pressure and to determine the dryness fraction of the steam produced. Boiling patterns at the water surface can be observed directly.
- TMT: Temperature Measurement Unit
Teaching unit that compares several temperature measuring devices and their accuracy. It covers thermometric properties, the Peltier and Seebeck thermoelectric effects, the laws of intermediate metals and temperatures, and series or parallel thermocouple arrangements.
