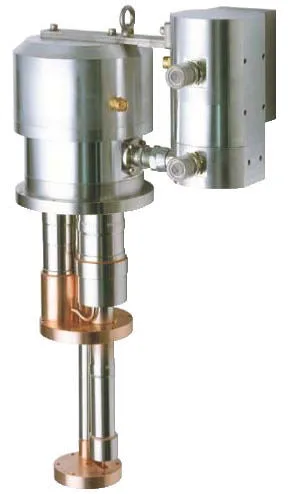

Two-stage pulse tube cryocooler (RP-062B, RP-082B)
Brand: Lake Shore | Category: Nanotechnology
This two-stage pulse tube cryocooler reaches a base temperature below 3.0 K, which extends its range of use to low temperature, low vibration applications. Because the pulse tube cooler carries no internal moving parts, vibration levels are inherently low. Two models are published, the RP-062B rated at 0.5 W at 4.2 K and the RP-082B at 1.0 W at 4.2 K, and both are for vertical orientation only.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Parameter | RP-062B | RP-082B |
|---|---|---|
| Refrigeration cycle | Pulse tube (2-stage) | Pulse tube (2-stage) |
| Refrigeration capacity (vertical position) | 1st stage: 30 W at 65 K (50/60 Hz) 2nd stage: 0.5 W at 4.2 K (50/60 Hz) | 1st stage: 40 W at 45 K (50/60 Hz) 2nd stage: 1.0 W at 4.2 K (50/60 Hz) |
| Orientation | Vertical only | Vertical only |
| Lowest temperature | <3.0 K | <3.0 K |
| Vibration level | ±4 µm at 2nd stage flange | 1st stage: ±7 µm; 2nd stage: ±9 µm |
| Weight | 23.2 kg | 26 kg |
| Cold head dimensions (mm)—approximate | 336 W × 190 L × 604 H | 190 W × 347 L × 581 H |
| Cooldown time (to 4.2 K) | <100/90 min (50/60 Hz) | <80 min (50/60 Hz) |
| Maintenance | Every 20,000 h | Every 20,000 h |
| Compatible compressor unit model | F-50 | F-70 |
| Flexline length | 20 m* | 20 m* |
| Flexline weight | 7.5 kg per line | 7.5 kg per line |
| *Buffer tanks + 6 m lines may optionally be substituted for the 20 m long lines. 6 m lines weigh 5 kg per line. |
Manufacturer catalogue checked 2026-09-29.
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation.
