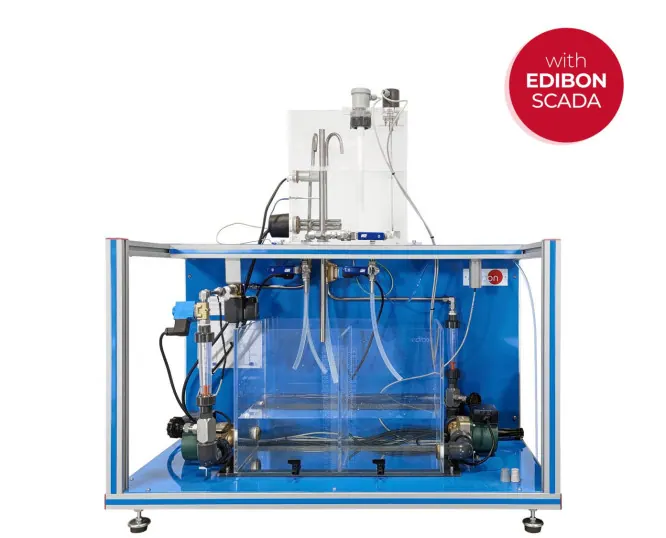

UCP: Computer Controlled Process Control (Electronic Valve)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A computer controlled process control unit using an electronic control valve. It supports several types of automatic control and can be applied to flow, level, temperature, pressure, pH, conductivity and total dissolved solids.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 1000 x 500 x 1000 mm |
| Weight | 50 Kg approx |
| Two centrifugal pumps, range | 0 to 10 l/min |
| Power supply outputs | 24 Vdc, 12 Vdc, -12 Vdc, 12 Vdc variable |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
