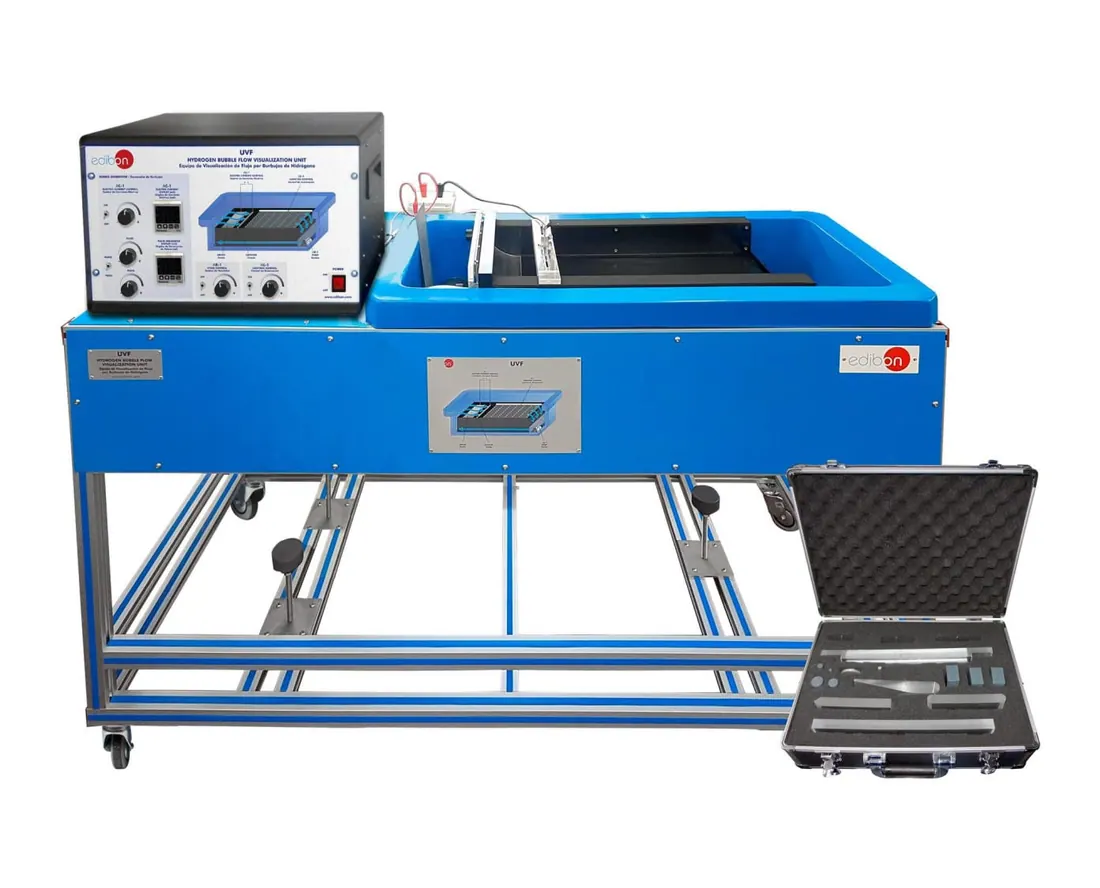

UVF: Hydrogen Bubble Flow Visualization Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
UVF visualises water flow using hydrogen bubbles generated on a fine wire by electrolysis. The bubble lines are lit and photographed so velocity profiles, wakes and boundary layers around models can be seen and measured.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1500 x 700 x 900 mm approx |
| Weight | 25 kg approx |
| Specification | Tank made of fiberglass with capacity of 25 l |
| Maximum flow | 1320 l/h |
| Maximum height | 14 m |
| Working section of dimensions | 600 x 290 mm, included |
